Description

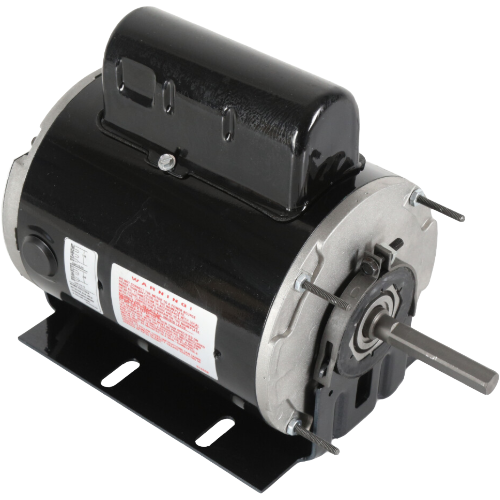

The Century C039A is a heavy-duty, single-phase direct drive motor engineered for reliable performance in demanding HVAC applications. Built around a 48Z frame with a resilient base mounting configuration, this motor delivers consistent airflow and dependable operation in condenser fan and evaporator fan applications where exposure to the elements is a concern.
Electrical Specifications
- Horsepower: 1/2 HP
- Voltage: 115/230V AC (dual voltage)
- Amperage: 7.1A (115V) / 3.6A (230V)
- Phase: Single Phase
Mechanical Specifications
- Speed: 825 RPM
- Speeds: 1
- Frame: 48Z
- Shaft: 1/2″ diameter x 2-1/2″ length
- Rotation: Reversible
- Drive Type: Direct Drive
- Mounting: Resilient Base
Construction & Protection
- Enclosure: TEAO (Totally Enclosed Air Over) for superior protection against moisture, dust, and contaminants
- Bearings: Double Sealed Ball Bearings for extended service life and reduced maintenance
Key Benefits
- Dual voltage (115/230V) capability provides installation flexibility across a wide range of equipment
- TEAO enclosure protects internal windings from harsh outdoor and high-airflow environments
- Reversible rotation allows for versatile field configuration without additional parts
- Double sealed ball bearings minimize friction and resist contamination for long-term reliability
- Resilient base mounting reduces vibration transmission and noise in the system
- Low 825 RPM speed is ideal for condenser fan applications requiring quiet, efficient airflow
The Century C039A is a trusted replacement motor for OEM and aftermarket HVAC applications. Its combination of dual voltage wiring, reversible rotation, and a robust TEAO enclosure makes it a versatile, go-to solution for HVAC technicians and contractors.
