Description

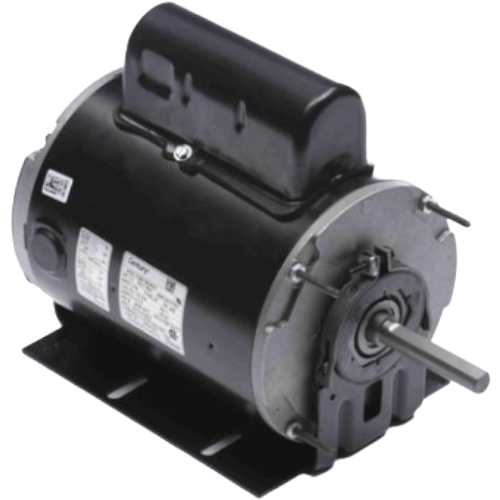

The Century C044A is a heavy-duty, single-phase direct drive motor engineered for reliable performance in demanding HVAC applications. Built around a 48Z frame with a resilient base mounting configuration, this motor is designed for straightforward installation and long-lasting service life in condenser fan and related air-movement applications.
Motor Specifications
- Horsepower: 1/2 HP
- Speed: 1700 RPM
- Speeds: 1
- Voltage: 115/230V AC
- Amperage: 5.5 A (115V) / 2.8 A (230V)
- Phase: Single Phase
- Frame: 48Z
- Mounting: Resilient Base
- Enclosure: TEAO (Totally Enclosed Air Over)
- Shaft: 1/2″ x 3″
- Rotation: Reversible
- Drive Type: Direct Drive
- Bearings: Double Sealed Ball Bearings
Key Features
- TEAO (Totally Enclosed Air Over) enclosure protects internal components from dust, moisture, and debris — ideal for outdoor condenser fan duty
- Double sealed ball bearings deliver extended bearing life and reduced maintenance requirements
- Reversible rotation provides installation flexibility to match a wide range of OEM and replacement applications
- Dual-voltage 115/230V AC wiring allows adaptation to available power supply without additional components
- Resilient base mounting minimizes vibration transmission to the equipment frame, reducing noise and wear
- 48Z frame ensures broad cross-reference compatibility with standard HVAC equipment
- 1/2″ x 3″ shaft accommodates common fan blade hub configurations for direct drive setups
Application
The Century C044A is well suited for use as a condenser fan motor or general-purpose HVAC motor replacement in residential and light commercial equipment. Its TEAO enclosure and sealed ball bearings make it a dependable choice for outdoor or air-over service conditions where motor longevity and minimal downtime are priorities.
