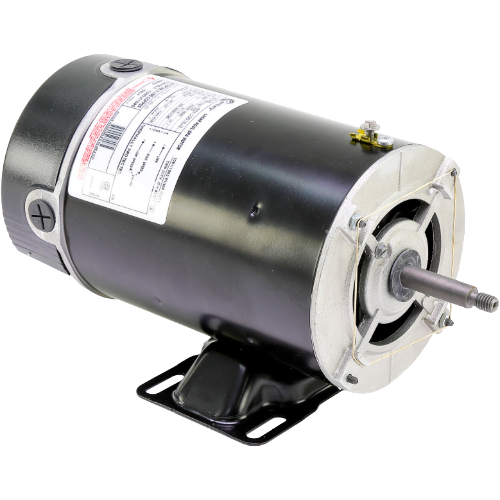

Century BN36 Pool & Spa Motor Overview
The Century BN36 is a purpose-built two-speed pool and spa motor engineered for reliable, efficient circulation in residential and light-commercial aquatic applications. Designed around the industry-standard 48Y frame, this motor delivers the versatility and durability that pool and spa service professionals demand.
Key Specifications
- Horsepower: 3/4 HP (high speed) / .10 HP (low speed)
- Speed: 2-Speed — 3450 RPM (high) / 1725 RPM (low)
- Voltage: 115V AC
- Amperage: 8.8A (high speed) / 2.6A (low speed)
- Frame: 48Y
- Shaft Type: Threaded shaft
- Shaft Height: 3-1/2″
- Rotation: Counter-clockwise (CCW) from pump end
- Overload Protection: Automatic overload protector
Performance & Design Features
- Two-speed operation allows high-speed filtration and low-speed circulation, reducing energy consumption during off-peak cycles
- 48Y frame provides direct compatibility with the most common pool and spa pump housings
- Threaded shaft ensures a secure, vibration-resistant connection to pump impellers
- CCW pump-end rotation matches standard pool pump configurations for drop-in replacement
- Built-in automatic overload protector guards the motor windings against thermal damage and nuisance failures
- 3-1/2″ shaft height aligns with standard 48Y pump mounting dimensions for hassle-free installation
Ideal Applications
- In-ground and above-ground swimming pool pumps
- Spa and hot tub circulation pumps
- Two-speed pump retrofits and replacements
Why Choose the Century BN36?
Century Motors has long been a trusted name in HVAC and aquatic motor solutions. The BN36 combines proven electrical design with a rugged build to deliver consistent performance season after season. Its two-speed capability not only extends motor life by reducing high-speed run time but also supports energy-saving variable-operation schedules required by many local codes and utility rebate programs.
