Description

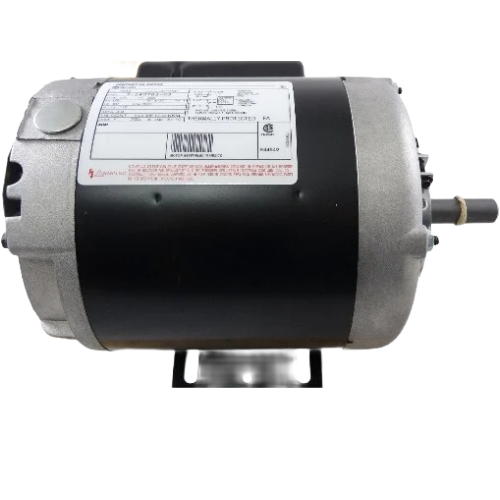

The Century C033 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in a wide range of HVAC and light commercial applications. Built around the industry-standard J56 NEMA frame, this motor delivers consistent, low-speed operation at 800 RPM — making it well-suited for fan coil units, evaporative coolers, and other air-moving equipment where quiet, dependable performance is critical.
Electrical Specifications
- Voltage: 115 VAC
- Phase: Single Phase
- Amperage: 3.0 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Horsepower: 1/6 HP
- Speed: 800 RPM
- NEMA Frame: J56
- Shaft Size: 5/8″ diameter x 2″ length
- Rotation: Reversible
- Mounting: Cushion Base
Construction & Design
- Enclosure: Open Drip Proof (ODP)
- Bearings: Ball Bearing
- Reversible rotation for flexible installation
- Cushion base mount absorbs vibration and reduces noise transmission
Key Benefits
- PSC design provides efficient, smooth operation with low starting current
- Ball bearings deliver extended service life and reduced maintenance requirements
- J56 NEMA frame ensures broad cross-reference compatibility for replacement applications
- Open Drip Proof enclosure protects against dripping liquids in standard indoor environments
- Reversible rotation simplifies installation and replacement across multiple equipment configurations
- Cushion base mounting minimizes vibration transfer to the equipment frame
