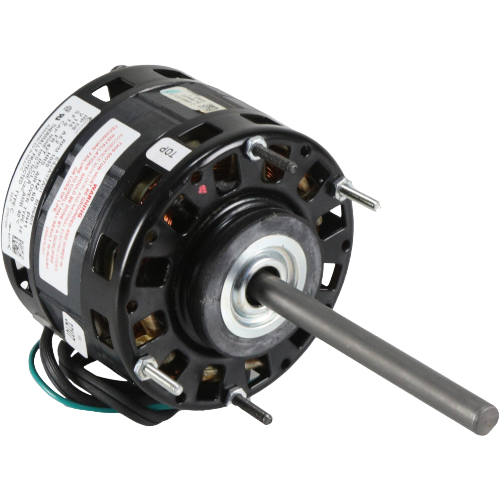

Century BLR6403 Shaded Pole Motor Overview
The Century BLR6403 is a reliable, single-phase shaded pole motor engineered for continuous-duty HVAC and refrigeration applications. Rated at 1/8 HP and powered by 115 VAC, this motor delivers consistent 1050 RPM performance in demanding open-air environments. Its compact 5-inch diameter frame and single-shaft design make it a versatile drop-in replacement for a wide range of OEM and aftermarket applications.
Key Specifications
- Horsepower: 1/8 HP
- Voltage: 115 VAC
- Phase: Single Phase
- Speed: 1050 RPM, 1 Speed
- Amperage: 5.2 Amps
- Rotation: CCWLE (Counter-Clockwise Lead End)
- Motor Type: Shaded Pole
- Frame Diameter: 5 Inches
- Shaft Configuration: Single Shaft
- Bearing Type: Sleeve Bearing
- Enclosure: Open Air
- Duty: Continuous
Features & Benefits
- Shaded pole design provides simple, low-maintenance operation with no brushes or capacitors required
- Sleeve bearing construction ensures quiet, smooth operation and extended service life
- Open air enclosure promotes airflow for effective motor cooling in ventilation and refrigeration settings
- Continuous duty rating supports reliable, around-the-clock operation
- CCWLE rotation is pre-set for direct OEM replacement compatibility
- Compact 5-inch diameter frame fits a wide range of equipment footprints
- Single-shaft configuration simplifies installation and alignment
Typical Applications
- Evaporator fan motors in refrigeration cases and coolers
- Small HVAC blower and fan assemblies
- Display case and reach-in cooler fan motors
- OEM replacement for shaded pole motor applications requiring 1050 RPM at 115V
