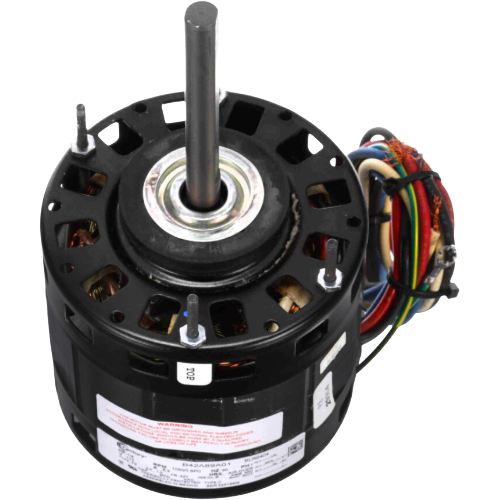

Century BLR6404 Shaded Pole Motor, 1/4-1/6-1/8 HP, 1050 RPM, 3-Speed, 115V

Description

Overview

The Century BLR6404 is a multi-horsepower, 3-speed shaded pole motor engineered for reliable, continuous-duty performance in air-over HVAC applications. With selectable horsepower outputs of 1/4, 1/6, and 1/8 HP, this motor provides installation flexibility across a wide range of fan coil units, evaporator blowers, and other air-moving equipment.

Electrical Specifications

• Voltage: 115V AC
• Speeds: 3-Speed
• Amperage: 8.2A (High) / 4.2A (Medium) / 3.4A (Low)
• Horsepower: 1/4 HP / 1/6 HP / 1/8 HP (speed-selectable)

Mechanical Specifications

• Speed: 1050 RPM
• Frame Diameter: 5 inches
• Shaft: Single shaft, 1/2″ flatted
• Rotation: CCWLE (Counter-Clockwise, Lead End)
• Bearings: Sleeve bearings
• Duty: Continuous
• Motor Type: Shaded Pole
• Cooling Method: Air Over

Key Features

• Three selectable speed/horsepower settings for versatile application fit
• Sleeve bearing construction for quiet, low-maintenance operation
• Air-over design suited for direct airstream mounting in fan coil and blower assemblies
• 1/2″ flatted shaft for secure blade or wheel attachment
• Continuous-duty rating ensures dependable long-term operation
• CCWLE rotation for compatibility with a broad range of OEM blower assemblies

Typical Applications

• Fan coil units
• Evaporator blowers
• Room air conditioners
• Residential and light commercial HVAC blower assemblies
