Description

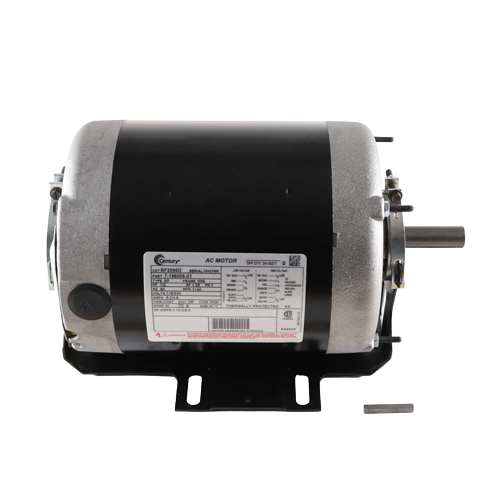

The Century BF2056D is a dependable 1/2 HP split phase motor engineered for a wide range of HVAC and industrial applications. Built on the industry-standard 56 frame, it offers flexible installation and straightforward replacement compatibility. With dual-voltage capability and reversible rotation, this motor adapts to a variety of system configurations right out of the box.
Key Features
- 1/2 HP output for reliable performance in light-duty HVAC and mechanical applications
- Dual voltage operation: 115/230 VAC — easily configurable for your electrical system
- Single phase power supply for compatibility with standard residential and light commercial circuits
- 1140 RPM operating speed for smooth, low-vibration performance
- Single speed operation for straightforward control
- 9.2 / 4.6 amp draw at 115V / 230V respectively
- 56 frame size — industry-standard mounting for easy drop-in replacement
- Open Drip-Proof (ODP) enclosure protects internal components from dripping liquids and falling debris
- Ball bearing construction for long service life and reduced maintenance
- Resilient base mount for vibration dampening and flexible installation
- 1/2″ x 1-1/2″ shaft dimensions for broad coupling and pulley compatibility
- Reversible rotation — field-configurable for clockwise or counterclockwise operation
Specifications
- Horsepower: 1/2 HP
- Voltage: 115/230 VAC
- Phase: Single Phase
- Speed: 1140 RPM
- Number of Speeds: 1
- Amperage: 9.2 A (115V) / 4.6 A (230V)
- Frame Size: 56
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Base
- Shaft Size: 1/2″ x 1-1/2″
- Rotation: Reversible
- Motor Type: Split Phase
Applications
The Century BF2056D split phase motor is well-suited for use in fans, blowers, pumps, compressors, and other HVAC or light industrial equipment requiring a reliable, single-phase motor solution. Its ODP enclosure makes it appropriate for indoor applications where some exposure to dripping water or falling particles is possible, while the resilient base and ball bearings ensure quiet, long-lasting operation.
