Description

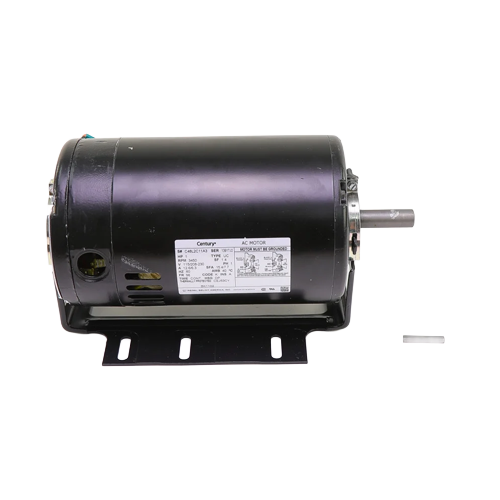

The Century BK1102 is a heavy-duty, open drip-proof (ODP) general purpose motor engineered for demanding HVAC and industrial applications. Delivering 1 horsepower at 3450 RPM, this motor is built on the industry-standard 56 frame and features dual-voltage capability, making it a versatile drop-in replacement across a wide range of equipment.
Key Features
- 1 HP output at 3450 RPM for high-speed applications
- Dual voltage operation: 115/208-230V AC
- Full-load amperage: 15.4A (115V) / 7.7A (208-230V)
- Industry-standard 56 frame for easy cross-referencing and replacement
- Ball bearing construction for long service life and reduced friction
- Open drip-proof (ODP) enclosure for ventilated indoor environments
- Built-in automatic overload protector for motor protection
- High start torque for reliable startup under load
- Open construction for maximum airflow and cooling
- Reversible rotation for flexible installation
Specifications
- SKU: BK1102
- Brand: Century
- Horsepower: 1 HP
- Speed: 3450 RPM
- Voltage: 115/208-230V AC
- Amperage: 15.4A (115V) / 7.7A (208-230V)
- Frame: 56
- Bearings: Ball Bearings
- Enclosure: Open Drip-Proof (ODP)
- Overload Protection: Automatic
- Rotation: Reversible
- Construction: Open
Application
The BK1102 is ideally suited for use in air compressors, pumps, fans, blowers, and other HVAC or light industrial equipment requiring a reliable, high-speed motor. The reversible rotation and dual-voltage design make it a flexible solution for new installations and replacement projects alike. The automatic overload protector adds an extra layer of safety, helping to prevent motor burnout in demanding duty cycles.
