Description

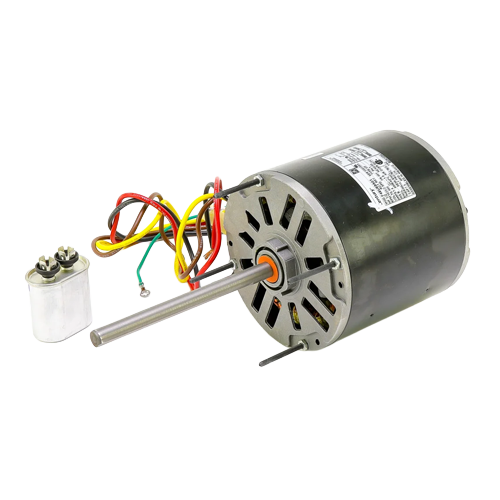

The Century BDH1054 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC applications. Featuring a 2-speed design with dual horsepower ratings, this motor delivers versatile airflow control and efficient operation in fan coil units, air handlers, and other commercial HVAC equipment.
Motor Specifications
- Horsepower: 1/2 – 1/3 HP (2-speed)
- Voltage: 460 VAC, Single Phase
- Speed: 1625 RPM
- Amperage: 1.4 – 1.3 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- NEMA Frame Size: 48Y
- Enclosure: Semi Enclosed
- Bearing Type: Ball Bearing
- Shaft: 1/2″ diameter x 6-1/2″ length
- Rotation: Reversible
Key Features
- 2-speed operation for flexible airflow and energy management
- Permanent Split Capacitor design for smooth, quiet starts and efficient continuous operation
- Ball bearing construction for extended service life and reduced maintenance
- Reversible rotation provides installation flexibility for a wide range of equipment configurations
- Semi-enclosed enclosure protects internal components from dust and debris
- 48Y NEMA frame ensures compatibility with standard OEM mounting configurations
- 1/2″ x 6-1/2″ shaft accommodates a variety of fan blade and blower wheel assemblies
Typical Applications
- Fan coil units
- Air handlers
- Commercial HVAC blower assemblies
- OEM replacement applications requiring 48Y frame motors
The Century BDH1054 is built to Century’s exacting quality standards, making it a trusted choice for HVAC technicians and contractors seeking a dependable, direct-replacement motor for commercial and light-industrial installations.
