Description

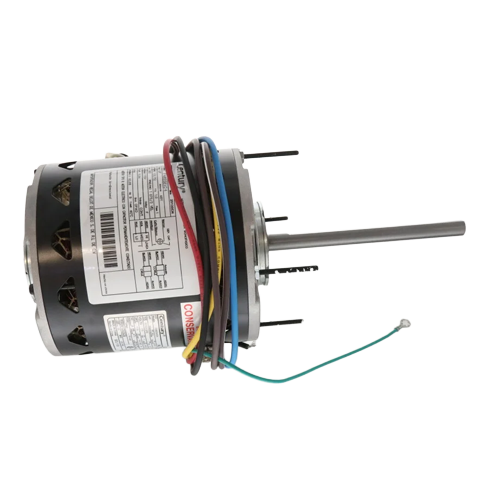

The Century BDL1106 is a heavy-duty Permanent Split Capacitor (PSC) blower motor engineered for reliable, efficient airflow in residential and light commercial HVAC applications. With a 1 HP output and three selectable speed taps, this motor delivers the flexibility needed to match a wide range of blower and air handler configurations.
Electrical Specifications
- Voltage: 115 VAC
- Phase: Single Phase
- Amperage: 12.3 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Performance Specifications
- Horsepower: 1 HP
- Speed: 1075 RPM
- Number of Speeds: 3
- Rotation: Reversible
Mechanical Specifications
- NEMA Frame Size: 48Y
- Shaft Size: 1/2″ diameter x 6″ length
- Bearing Type: Ball Bearing
- Enclosure: Open Air
- Mounting: Resilient (rubber ring mount)
Key Features
- Three-speed operation allows flexible airflow adjustment for heating, cooling, and continuous fan modes
- Reversible rotation provides installation versatility for various blower configurations
- Ball bearing construction ensures long service life and quiet, smooth operation
- Resilient mounting base reduces vibration transmission to the cabinet or air handler
- Open air enclosure promotes motor cooling in indoor HVAC environments
- Standard 48Y NEMA frame for broad OEM and aftermarket compatibility
- Long 6″ shaft accommodates a wide variety of blower wheel sizes and hub depths
Applications
- Residential and light commercial furnace air handlers
- Fan coil units
- Blower assemblies requiring a 48Y frame PSC motor
- OEM replacement in systems originally equipped with a compatible 1 HP, 1075 RPM blower motor
The BDL1106 is a direct replacement solution for technicians seeking a dependable, high-quality blower motor that meets standard NEMA 48Y dimensional requirements. Its reversible rotation and multi-speed capability make it a versatile stock item for HVAC service fleets.
