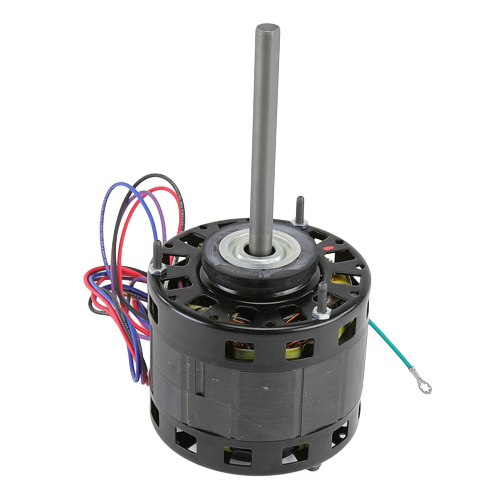

Century B6415 Fan/Blower Motor Overview
The Century B6415 is a versatile shaded pole fan and blower motor engineered for reliable, continuous-duty performance in a wide range of HVAC air-handling applications. With three selectable horsepower settings and a compact 5-inch diameter frame, this motor is a go-to replacement for residential and light commercial blower assemblies.
Key Features
- 5″ diameter frame — compact design for tight equipment installations
- Multi-horsepower rated: 1/5 HP, 1/8 HP, and 1/10 HP selectable
- 1050 RPM operating speed for consistent, quiet airflow
- 3-speed operation provides flexible airflow control
- 208–230V voltage rating for standard residential and commercial power supplies
- Shaded pole motor design — simple, brushless, and low-maintenance
- Sleeve bearing construction for smooth, quiet operation
- CCWLE (Counter-Clockwise rotation, Lead End) for proper directional airflow
- Single shaft configuration with 1/2″ flatted shaft for secure blade or wheel attachment
- Continuous duty rated — built to run reliably around the clock
Specifications
- SKU: B6415
- Frame Diameter: 5″
- Horsepower: 1/5 HP / 1/8 HP / 1/10 HP (3-speed)
- Speed: 1050 RPM
- Voltage: 208–230V
- Motor Type: Shaded Pole
- Bearing Type: Sleeve
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Shaft: Single, 1/2″ Flatted
- Duty: Continuous
Applications
The Century B6415 is ideal as a direct replacement motor in furnace blower assemblies, fan coil units, evaporator coils, and other forced-air HVAC equipment requiring a 5-inch shaded pole motor. Its multi-speed, multi-horsepower design makes it compatible with a broad range of OEM applications, reducing the need to stock multiple SKUs.
