Description

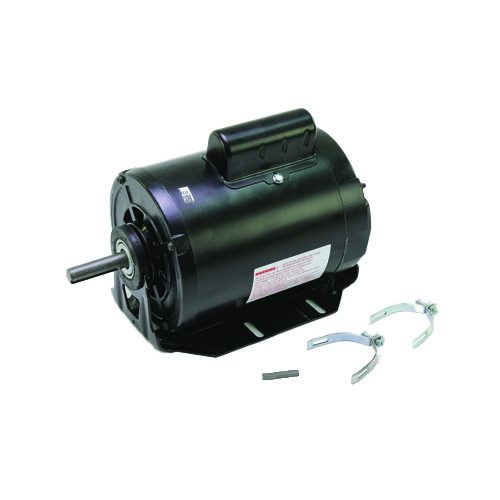

The Century SV2104L is a robust, single-speed capacitor start motor engineered for demanding HVAC and commercial applications. Rated at dual horsepower outputs of 1 HP and 1/3 HP with corresponding speeds of 1725 and 1140 RPM, this motor delivers the flexibility needed for a wide range of blower and fan-duty installations.
Electrical Specifications
- Voltage: 115V AC
- Amperage: 12.7 / 7.6 Amps
- Motor Type: Capacitor Start
- Speed: 1 Speed
- Service Factor: 1.00
Mechanical Specifications
- Horsepower: 1 HP / 1/3 HP (dual rating)
- RPM: 1725 / 1140
- Frame: 56Z
- Rotation: CCWLE (Counter-Clockwise Lead End)
- Enclosure: Open
- Protector: Auto Protector
Construction & Durability Features
- Continuous filtration of oil for long-lasting lubrication and bearing protection
- Heavy magnet wire insulation for enhanced electrical durability and heat resistance
- Auto protector provides automatic thermal overload protection
- Open enclosure design promotes airflow and cooling during operation
Application
The SV2104L is well-suited for use in HVAC blower assemblies, fan applications, and other motor-driven equipment requiring reliable dual-speed performance. The 56Z frame ensures compatibility with a broad range of standard mounting configurations, while the CCWLE rotation and capacitor start design provide strong starting torque and smooth operation across both speed ratings.
