Description

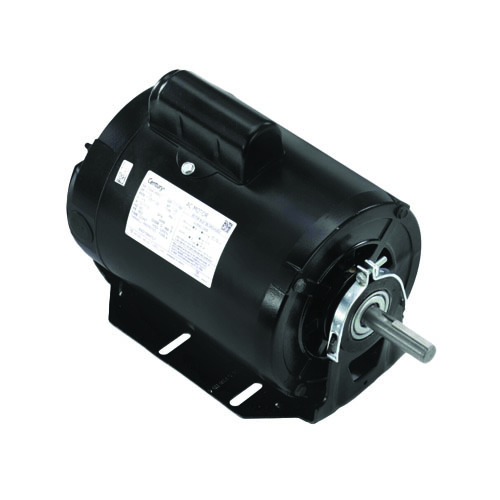

The Century SV2104V1L1 is a heavy-duty, two-speed electric motor engineered for demanding HVAC and industrial applications where variable airflow or load control is required. Built on a rugged 56Z frame, this capacitor-start motor delivers reliable performance across a wide range of continuous-duty applications.
Electrical Specifications
- Voltage: 115V AC
- Speeds: 2-Speed — 1725 RPM (high) / 1140 RPM (low)
- Horsepower: 1 HP (high speed) / 1/3 HP (low speed)
- Amperage: 12.7 Amps (high speed) / 7.6 Amps (low speed)
- Motor Type: Capacitor Start
- Service Factor: 1.00
Mechanical & Construction Features
- Frame: 56Z
- Enclosure: Open
- Rotation: Reversible
- Thermal Protection: Automatic Protector
- Lubrication: Continuous Filtration of Oil for extended bearing life
- Winding: Heavy Magnet Wire Insulation for superior durability and heat resistance
Key Benefits
- Two-speed operation allows flexible system control and energy savings at lower load conditions
- Reversible rotation provides installation versatility across multiple equipment configurations
- Automatic thermal protector guards against overheating and motor burnout
- Continuous oil filtration system extends bearing life and reduces maintenance intervals
- Heavy magnet wire insulation improves resistance to heat, moisture, and electrical stress
- Open enclosure design promotes airflow and heat dissipation in well-ventilated environments
Applications
The Century SV2104V1L1 is well-suited for use in evaporative coolers, fans, blowers, and other HVAC equipment requiring two-speed motor capability. Its 56Z frame ensures compatibility with a broad range of standard mounting configurations, making it an ideal direct replacement or upgrade motor for residential and light commercial systems.
