Description

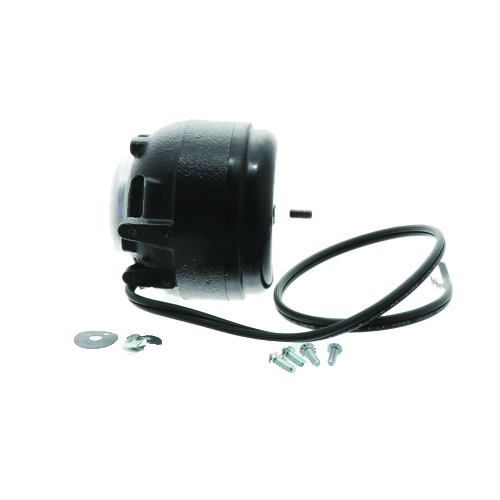

The Century 246 is a reliable shaded pole motor engineered for demanding HVAC and refrigeration applications where compact size, low power draw, and durable construction are essential. Its totally enclosed air-over (TEAO) design protects internal components from airborne contaminants, making it well-suited for use in fan and blower assemblies where the motor is cooled by the airstream it drives.
Electrical Specifications
- Voltage: 115 VAC
- Phase: Single Phase
- Wattage: 16 Watts
- Amperage: 0.80 Amps
- Speeds: 1
Mechanical Specifications
- Speed: 1500 RPM
- Bearing Type: Unit Bearing
- Shaft Size: 1/4″ x 20THD
- Rotation: Clockwise (CW) from Lead End
- Enclosure: Totally Enclosed Air Over (TEAO)
- Motor Type: Shaded Pole
Key Features & Benefits
- Totally Enclosed Air Over (TEAO) enclosure shields windings from dust, debris, and moisture in air-over environments
- Unit bearing design reduces maintenance requirements and provides long-lasting, quiet operation
- Low 16-watt power consumption helps minimize operating costs
- Single-phase, 115 VAC operation for straightforward installation on standard circuits
- 1/4″ x 20THD shaft ensures secure, precise coupling to fan blades and impellers
- Clockwise lead-end rotation clearly defined for correct directional installation
- Shaded pole design delivers simple, brushless operation with no starting capacitor required
Typical Applications
- Evaporator and condenser fan assemblies
- Refrigeration display cases
- Unit coolers and small air handlers
- OEM equipment replacement and service
