Description

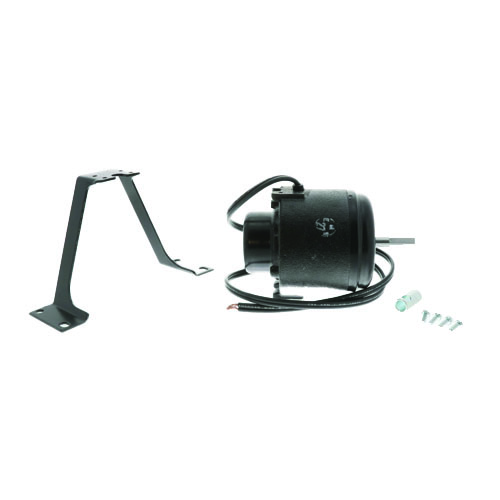

The Century 288 is a dependable shaded pole motor engineered for demanding HVAC and air-handling applications where reliable, low-maintenance performance is essential. Its totally enclosed air-over (TEAO) construction protects internal components from airborne contaminants, making it well suited for use in direct airstream environments such as fan coil units, unit heaters, and evaporator fans.
Electrical Specifications
- Power Output: 50 Watts
- Voltage: 230 VAC
- Phase: Single Phase
- Amperage: 0.85 Amps
Mechanical Specifications
- Speed: 1500 RPM
- Shaft Size: 3/8″ diameter x 1-1/2″ length
- Rotation: Clockwise (CW), Lead End
- Bearing Type: Unit Bearing
Construction & Design
- Motor Type: Shaded Pole
- Enclosure: Totally Enclosed Air Over (TEAO)
- Unit bearing design requires no external lubrication, reducing maintenance requirements
- Compact, robust build suitable for OEM and replacement installations
Typical Applications
- Fan coil units
- Unit heaters and unit coolers
- Evaporator and condenser fans
- Commercial and light industrial air-handling equipment
The Century 288 shaded pole motor’s unit bearing design eliminates the need for periodic oiling, lowering total cost of ownership over the life of the motor. Its TEAO enclosure ensures the motor can operate continuously in moving-air environments without risk of contamination damage. Whether used as a direct OEM replacement or in a new installation, the Century 288 delivers consistent, efficient operation.
