Overview

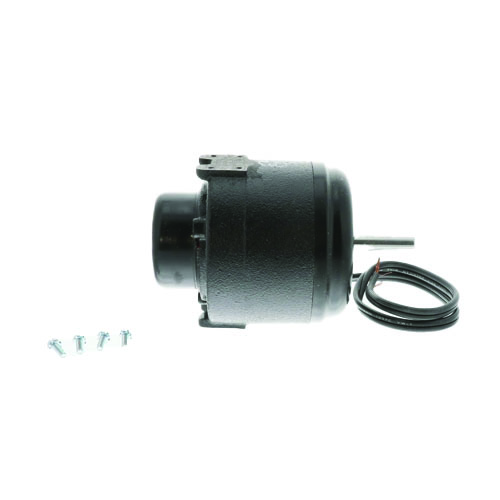

The Century 258 is a reliable shaded pole motor engineered for demanding HVAC and commercial air-handling applications. Rated at 50 watts with a totally enclosed, air-over (TEAO) construction, this motor is built to withstand the airstream environments found in unit heaters, fan coil units, and evaporator fans.
Electrical Specifications
- Voltage: 115 VAC
- Phase: Single Phase
- Amperage: 1.7 Amps
- Wattage: 50 Watts
Mechanical Specifications
- Speed: 1500 RPM
- Shaft Size: 3/8″ x 1-1/2″
- Rotation: Clockwise (CW) Lead End
- Bearing Type: Unit Bearing
- Enclosure: Totally Enclosed Air Over (TEAO)
- Motor Type: Shaded Pole
Key Features
- Totally enclosed air-over design protects internal components from dust and debris in the airstream
- Unit bearing construction provides long-lasting, low-maintenance operation
- Shaded pole design delivers simple, dependable starting without auxiliary start components
- 3/8″ x 1-1/2″ shaft accommodates a wide range of fan blade configurations
- Clockwise lead-end rotation for straightforward drop-in replacement installations
- Single-phase, 115 VAC operation — compatible with standard residential and light commercial power supplies
Typical Applications
- Unit heaters and unit ventilators
- Fan coil units
- Evaporator and condenser fan assemblies
- Refrigeration display cases
- Small air-handling equipment
