Description

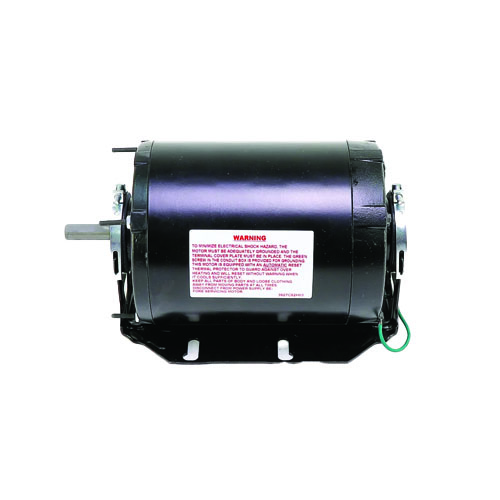

The Century 925AL is a dependable belt drive motor engineered for HVAC and light commercial applications where reliable, two-speed airflow control is essential. Built on the industry-standard 48 frame, this split phase motor delivers versatile performance across a broad range of fan and blower applications.
Motor Specifications
- Horsepower: 1/3 – 0.09 HP (two-speed)
- Voltage: 115V AC, Single Phase
- Speed: 1725 / 1140 RPM (2-Speed)
- Amperage: 6.6 – 2.4 Amps
- Frame Size: 48
- Motor Type: Split Phase
Construction & Design
- Enclosure: Open Drip Proof (ODP) for protected indoor installations
- Bearing Type: Ball Bearings for long service life and reduced maintenance
- Shaft Diameter: 1/2 inch
- Rotation: Reversible — adaptable to a wide range of installations
- Mounting: Resilient Base for vibration dampening and quiet operation
Key Benefits
- Two-speed operation allows flexible airflow adjustment to match system demand
- Reversible rotation simplifies installation and replacement across multiple equipment configurations
- Resilient base mounting minimizes vibration transfer and noise
- Ball bearing construction ensures durability and extended motor life
- Standard 48 frame sizing enables straightforward OEM and aftermarket replacement
Typical Applications
- Belt drive blowers and fans in residential and light commercial HVAC systems
- Air handling units (AHUs)
- Furnace and ventilation fan replacements
- General-purpose belt drive fan applications requiring two-speed control
