Description

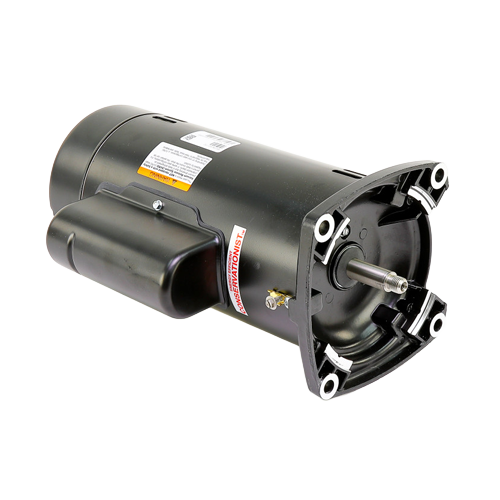

The Century SQ1152 is a heavy-duty, single-speed pool and spa pump motor engineered for reliable, high-performance water circulation. Built on the industry-standard 48Y frame with a two-compartment square flange mount, this motor integrates seamlessly with most residential and light-commercial pool pump housings.
Key Specifications
- Horsepower: 1-1/2 HP (1.5 HP)
- Total Horsepower (THP): 2.21
- Speed: 3450 RPM, Single Speed
- Voltage: 230V AC
- Full Load Amps: 10.4 A
- Service Factor: 1.47
- Frame: 48Y
- Mount: Two Compartment Square Flange
- Rotation: CCWPE (Counter-Clockwise, Pump End)
- Motor Type: Capacitor Start
- Enclosure: Open Drip-Proof (ODP)
- Bearings: Sealed Ball Bearings
- Shaft Material: 303 Stainless Steel Threaded
- Thermal Protection: Automatic Protector
Performance & Durability
The SQ1152 delivers a robust 2.21 Total Horsepower rating, making it well-suited for demanding pool and spa circulation applications. Its capacitor-start design provides strong starting torque, while the 1.47 service factor allows for reliable operation under varying load conditions. Sealed ball bearings extend service life and reduce maintenance requirements.
Corrosion-Resistant Construction
The 303 stainless steel threaded shaft resists the corrosive effects of pool chemicals and moisture, ensuring long-term durability in wet environments. The open drip-proof enclosure protects internal components from dripping water while promoting adequate airflow for motor cooling.
Easy Installation
The 48Y two-compartment square flange mount is compatible with a wide range of popular pool pump brands and models, simplifying replacement and retrofit installations. Counter-clockwise pump-end (CCWPE) rotation is the standard for most pool pump applications.
Safety & Protection
- Automatic thermal overload protector guards against motor burnout due to overheating or overloading
- Sealed ball bearings minimize contamination and reduce the need for re-lubrication
- Stainless steel shaft withstands chemical and moisture exposure
