Description

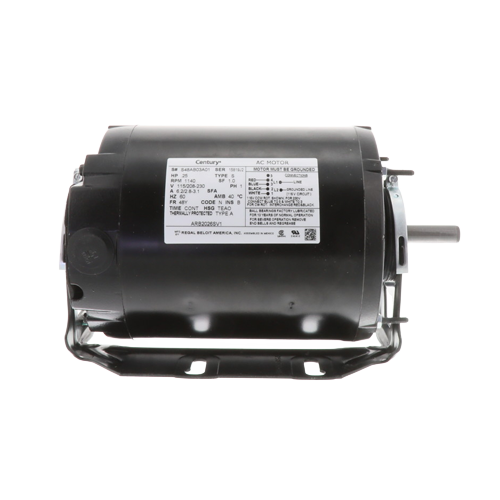

The Century ARB2026SV1 is a heavy-duty belt drive motor engineered for reliable performance in demanding HVAC air-handling applications. Built around a 48Y frame with a Totally Enclosed Air Over (TEAO) enclosure, this motor is designed to withstand the continuous airflow environments found in commercial and residential blower assemblies.
Electrical Specifications
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Amperage: 6.2 A (115V) / 2.8–3.1 A (208-230V)
- Speed: 1 Speed
- RPM: 1140
Mechanical Specifications
- Horsepower: 1/4 HP
- Frame Size: 48Y
- Shaft Diameter: 1/2″
- Bearing Type: Ball Bearing
- Enclosure: Totally Enclosed Air Over (TEAO)
- Mounting: Resilient Base
- Rotation: Reversible
Key Features
- Automatic overload protection for enhanced motor longevity
- Reversible rotation for flexible installation configurations
- Ball bearing construction for smooth, long-lasting operation
- Totally Enclosed Air Over enclosure protects internal components from dust and debris
- Resilient base mounting reduces vibration and noise transmission
- Dual-voltage capability (115/208-230V) for versatile application use
- 48Y frame for direct OEM replacement compatibility
Applications
The ARB2026SV1 is ideal for use in belt-drive blower assemblies, air handlers, and fan coil units where a low-speed, single-phase motor with a compact 48Y frame is required. The TEAO enclosure makes it well-suited for environments where the motor is cooled by the airstream it drives, a common configuration in forced-air HVAC systems.
Why Choose Century?
Century Motors, a trusted name in HVAC motor manufacturing, delivers consistent quality and broad OEM cross-reference compatibility. The ARB2026SV1 is built to meet the demands of professional HVAC contractors and service technicians who require dependable, drop-in replacement motors.
