Description

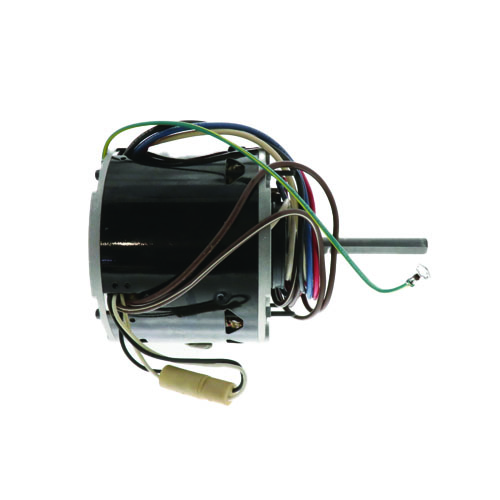

The Century 148A is a heavy-duty Permanent Split Capacitor (PSC) direct drive fan and blower motor engineered for reliable performance in residential and light commercial HVAC applications. Its multi-horsepower, multi-speed design makes it a versatile replacement motor suitable for furnaces, air handlers, and fan coil units.
Electrical Specifications
- Voltage: 115V AC, Single Phase
- Horsepower: 1/3 – 1/4 – 1/6 HP (multi-horsepower)
- Speed: 3-Speed, 1075 RPM
- Amperage: 5.3 – 3.9 – 3.0 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Frame Size: F48Y
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Enclosure: Semi Enclosed
- Bearing Type: Ball Bearing
Key Features
- Multi-horsepower (1/3, 1/4, 1/6 HP) for broad replacement coverage
- 3-speed operation provides flexible airflow control
- Reversible rotation for easy installation in various configurations
- Ball bearing construction for long service life and quiet operation
- Semi-enclosed design protects internal components from dust and debris
- PSC motor type delivers efficient, reliable performance
- F48Y frame ensures compatibility with a wide range of OEM applications
Typical Applications
- Residential and light commercial furnaces
- Air handlers and fan coil units
- Direct drive blowers and fans
- HVAC replacement motor applications
