Description

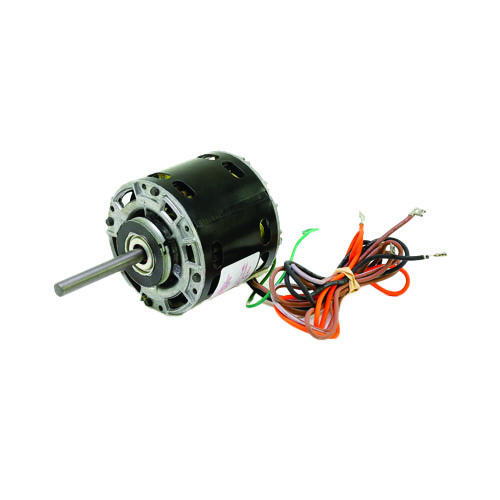

The Century 515 is a purpose-built furnace blower motor engineered for dependable, efficient air movement in residential and light commercial heating systems. Designed as a direct replacement for OEM blower applications, this motor delivers consistent performance with a straightforward installation process.
Motor Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230V AC
- Phase: Single Phase
- Speed: 1,100 RPM (1 Speed)
- Amperage: 1.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Frame Size: 42Y
Construction & Design
- Enclosure: Open Air Over (OAO)
- Bearing Type: Sleeve Bearing
- Shaft Diameter: 1/2 inch
- Shaft Rotation: Clockwise (CW) from Shaft End
- Mounting Style: Resilient Rings
Key Benefits
- Permanent Split Capacitor design provides smooth, quiet starting and efficient continuous operation
- Resilient ring mounting reduces vibration transmission to the blower housing, minimizing noise and wear
- Sleeve bearing construction offers long service life in the horizontal blower applications typical of residential furnaces
- 42Y frame ensures broad compatibility with standard furnace blower housings
- Single-speed operation simplifies wiring and control integration
Application
The Century 515 is ideally suited for furnace blower replacement applications where a 42Y frame, 1/4 HP, 208–230V PSC motor with resilient ring mounting is required. Its open air-over enclosure is optimized for use inside blower compartments where airflow from the fan cools the motor during operation. Always verify OEM specifications before installation to ensure compatibility with your specific furnace model.
