Description
Overview

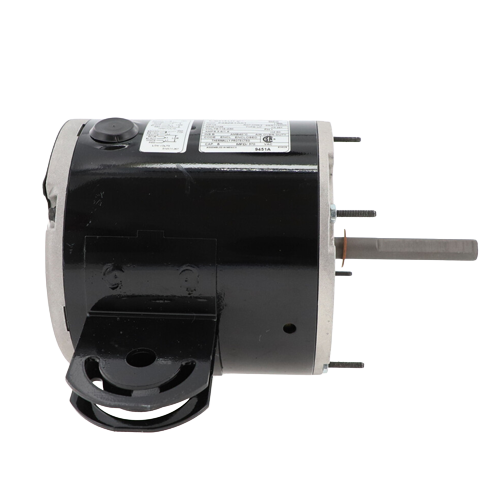

The Century 9451A is a heavy-duty pedestal fan motor engineered for demanding air-over applications. Built on a 48Y frame with a Totally Enclosed Air Over (TEAO) enclosure, this Permanent Split Capacitor (PSC) motor delivers consistent, single-speed performance in commercial and industrial pedestal fan installations. Dual-voltage capability and robust ball bearing construction make it a dependable choice for HVAC professionals and maintenance teams.
Key Features
- Permanent Split Capacitor (PSC) motor design for efficient, reliable operation
- Totally Enclosed Air Over (TEAO) enclosure protects internal components in high-airflow environments
- Ball bearing construction for extended service life and reduced maintenance
- Dual-voltage rating (115/230V AC) for flexible installation across single-phase systems
- Yoke mounting for secure, vibration-resistant pedestal fan installation
- CCW rotation (lead end) to match standard pedestal fan blade configurations
- 1/2″ diameter shaft for direct compatibility with common fan blade hubs
Specifications
- SKU: 9451A
- Horsepower: 1/4 HP
- Voltage: 115/230V AC
- Phase: Single Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 3.6 A (115V) / 1.8 A (230V)
- Frame Size: 48Y
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Shaft Diameter: 1/2″
- Rotation: CCW (Lead End)
- Mounting: Yoke
- Motor Type: Permanent Split Capacitor (PSC)
Applications
- Pedestal and column fans in commercial and industrial settings
- Replacement motor for 48Y-frame pedestal fan assemblies
- High-airflow environments requiring a totally enclosed motor
