Description

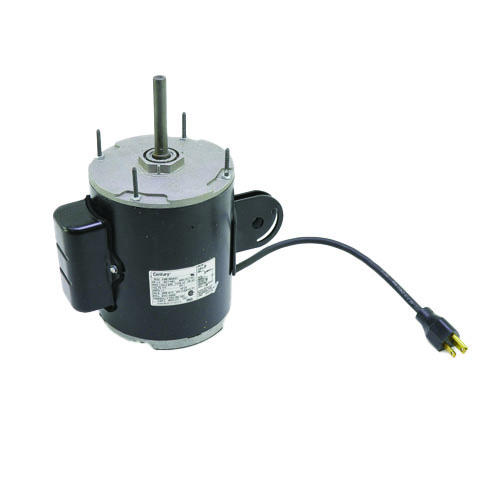

The Century 486A is a heavy-duty pedestal fan motor engineered for reliable, long-lasting performance in demanding air-over applications. Built on a 48Y frame with a Totally Enclosed Air Over (TEAO) enclosure, this motor is designed to withstand the continuous airflow and environmental conditions typical of industrial and commercial pedestal fan installations.
Motor Overview
Powered by a Permanent Split Capacitor (PSC) design, the 486A delivers smooth, efficient operation at two selectable speeds, giving installers and end users the flexibility to match airflow output to the application. The reversible rotation feature adds further versatility, allowing the motor to be configured for either direction without additional hardware.
Electrical Specifications
- Voltage: 115V AC
- Phase: Single Phase
- Horsepower: 1/4 HP
- Amperage: 3.2 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 2-Speed
Mechanical Specifications
- Speed: 1100 RPM
- Frame Size: 48Y
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Mounting: Yoke Mounting
Key Features
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from dust, debris, and moisture in air-stream environments
- Ball bearing construction ensures long service life and reduced maintenance requirements
- 2-speed operation provides flexible airflow control for varying comfort or process needs
- Reversible rotation allows for versatile installation configurations
- Yoke mounting design simplifies installation and secure positioning in pedestal fan assemblies
- PSC motor design delivers energy-efficient, quiet operation
- Standard 48Y frame ensures broad compatibility with OEM and replacement pedestal fan applications
Applications
The Century 486A is ideal as a direct replacement or upgrade motor for pedestal fans used in warehouses, workshops, gyms, agricultural facilities, and other commercial or industrial environments requiring dependable high-volume air circulation.
