Description

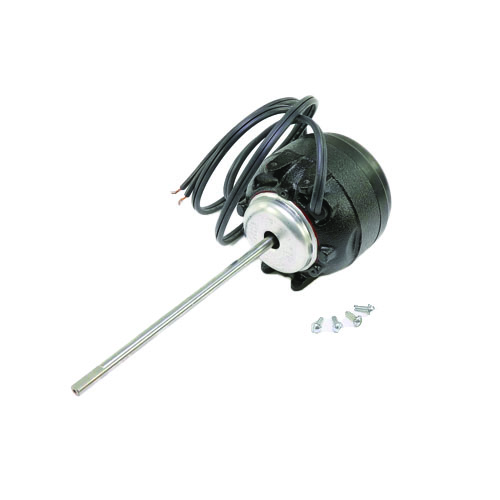

The Century 277 is a heavy-duty unit bearing shaded pole motor engineered for reliable performance in HVAC and light commercial fan applications. With a totally enclosed air-over (TEAO) design, this motor is built to withstand demanding environments where airflow provides the necessary cooling.
Key Specifications
- Power Output: 15 Watts
- Voltage: 115VAC, Single Phase
- Speed: 1500 RPM, 1 Speed
- Current Draw: 0.6 Amps
- Motor Type: Shaded Pole
- Enclosure: Totally Enclosed Air Over (TEAO)
- Shaft Diameter: 5/16″
- Rotation: CCW (Counter-Clockwise), Lead End
- Mounting Style: Rear / Double Foot
- Bearing Type: Unit Bearing
Product Highlights
- Unit bearing design provides long service life with minimal maintenance requirements
- Totally enclosed air-over enclosure protects internal components from dust and debris
- Single-phase, 115VAC operation for straightforward installation in standard electrical systems
- Rear/double foot mounting offers secure, stable installation across a variety of equipment configurations
- Counter-clockwise (CCW) rotation from the lead end ensures correct airflow direction in compatible fan assemblies
- Compact shaded pole design ideal for low-torque, continuous-duty fan and blower applications
Common Applications
- Evaporator fan motors in refrigeration and HVAC units
- Small blower and fan assemblies in light commercial equipment
- OEM replacement motor for compatible unit bearing fan motor applications
The Century 277 motor is a trusted, direct-replacement solution for technicians and contractors seeking a dependable unit bearing motor with proven shaded pole technology. Its rugged TEAO construction and standard electrical ratings make it a go-to choice for a wide range of HVAC service calls.
