Description

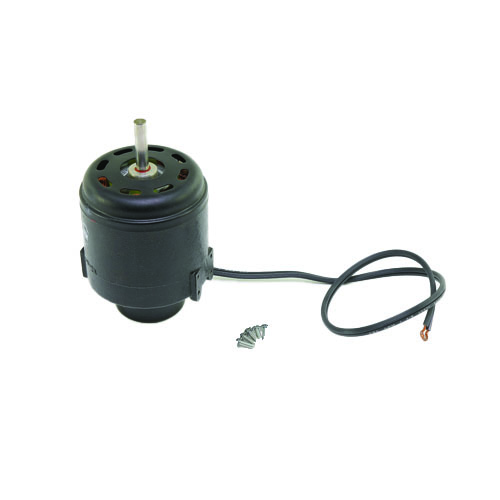

The Century 298 is a rugged unit bearing shaded pole motor engineered for reliable performance in demanding HVAC and air-handling applications. With a totally enclosed air-over (TEAO) design, it is built to withstand harsh operating environments where direct airflow provides motor cooling.
Key Specifications
- Watts: 75W
- Voltage: 230VAC, Single Phase
- Speed: 1500 RPM, 1 Speed
- Amperage: 1.5 Amps
- Enclosure: Totally Enclosed Air Over (TEAO)
- Shaft Diameter: 3/8″
- Rotation: Clockwise (CW), Lead End
- Mounting: Rear / Double Foot
- Motor Type: Shaded Pole
- Bearing Type: Unit Bearing
Design & Construction
- Unit bearing design reduces friction and extends service life with minimal maintenance
- Shaded pole construction provides simple, reliable starting without external capacitors
- Totally enclosed air-over enclosure protects internal components from dust and debris
- Rear and double foot mounting configuration allows for flexible installation in a variety of equipment
- 3/8″ diameter shaft accommodates standard fan blades and blower wheels
Typical Applications
- Unit heaters and fan coil units
- Evaporator and condenser fan assemblies
- Air handlers and ventilation equipment
- OEM replacement and retrofit applications requiring 230VAC single-phase power
The Century 298 delivers consistent, single-speed airflow performance in a compact, low-maintenance package. Its straightforward shaded pole design and robust TEAO enclosure make it a dependable choice for HVAC professionals seeking a long-lasting motor solution.
