Description

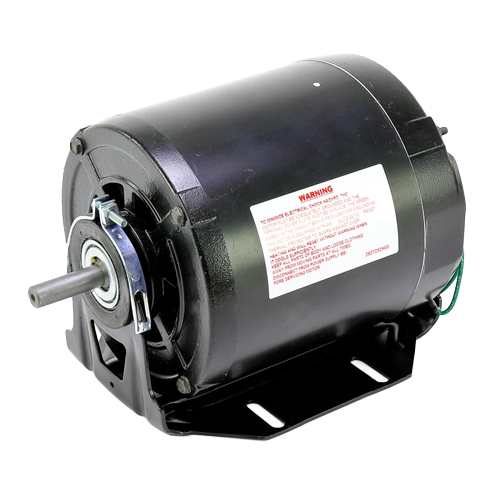

The Century SGF2034V4 is a heavy-duty, two-speed single-phase motor engineered for reliable belted drive applications in HVAC systems. With dual horsepower ratings and a variable torque, two-winding design, this motor delivers the flexibility needed to match system airflow demands across a wide range of operating conditions.
Key Features
- Dual horsepower ratings: 1/3 HP (high speed) and 1/10 HP (low speed)
- Two-speed, two-winding variable torque design for flexible airflow control
- Operating speeds of 1725 RPM and 1140 RPM
- 115V AC single-phase power supply
- Current draw: 6.7 Amps (high speed) / 3.3 Amps (low speed)
- 1.35 service factor for added operational headroom
- 56Z frame for straightforward OEM and replacement installations
- Sleeve bearings for quiet, low-maintenance operation
- Open enclosure for maximum ventilation and heat dissipation
- Automatic overload protector for built-in thermal protection
- Resilient base mount for vibration dampening and easy installation
- Reversible rotation for versatile system configurations
- Belted drive design suitable for air handlers, blowers, and fan coil units
Specifications
- SKU: SGF2034V4
- Brand: Century
- Horsepower: 1/3 HP – 1/10 HP
- Speed: 1725 / 1140 RPM
- Voltage: 115V AC
- Amperage: 6.7 / 3.3 Amps
- Service Factor: 1.35
- Frame: 56Z
- Bearings: Sleeve
- Enclosure: Open
- Overload Protection: Automatic
- Mount: Resilient Base
- Phase: Single Phase
- Drive Type: Belted
- Speeds: 2
- Windings: 2
- Torque Type: Variable Torque
- Rotation: Reversible
Applications
The SGF2034V4 is ideal for use in commercial and residential HVAC equipment requiring a two-speed belted drive motor. Common applications include air handlers, fan coil units, and blower assemblies where variable airflow and quiet operation are priorities. The reversible rotation and resilient base mount make it a versatile drop-in replacement or new installation choice.
