Description

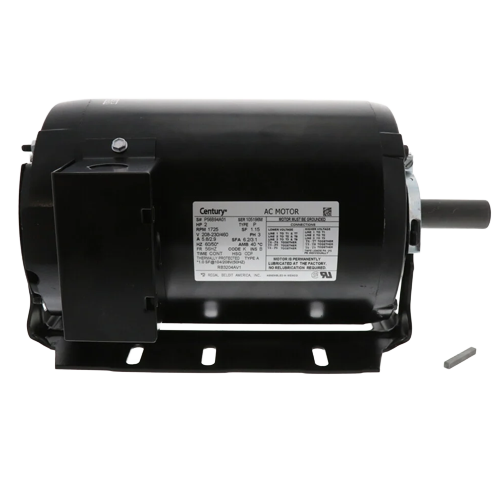

The Century RB3204AV1 is a heavy-duty general purpose motor engineered for demanding HVAC and industrial applications. Built around a NEMA 56HZ frame with a resilient base mounting configuration, this motor delivers dependable performance across a wide range of equipment installations.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 6.2-3.1 Amps
- Speed: 1725 RPM
- Horsepower: 2 HP
- Number of Speeds: 1
Mechanical Specifications
- NEMA Frame Size: 56HZ
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Resilient Base
- Shaft Size: 5/8″ x 1 7/8″
- Rotation: Reversible
Key Features & Benefits
- Dual-voltage capability (208-230/460V) allows flexible installation across a wide range of electrical systems
- Three-phase design delivers smooth, efficient power for commercial and industrial HVAC equipment
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids and falling debris in standard indoor environments
- Ball bearing construction ensures long service life and reduced maintenance requirements
- Resilient base mounting helps absorb vibration and reduce noise transmission to connected equipment
- Reversible rotation provides installation flexibility to meet varied equipment requirements
- NEMA 56HZ frame ensures dimensional compatibility with standard motor mounts and couplings
The Century RB3204AV1 is an ideal replacement or OEM motor for fans, blowers, pumps, and other HVAC-related equipment requiring a reliable three-phase power source. Its dual-voltage winding and reversible rotation make it a versatile choice for contractors and facilities maintenance teams.
