Description

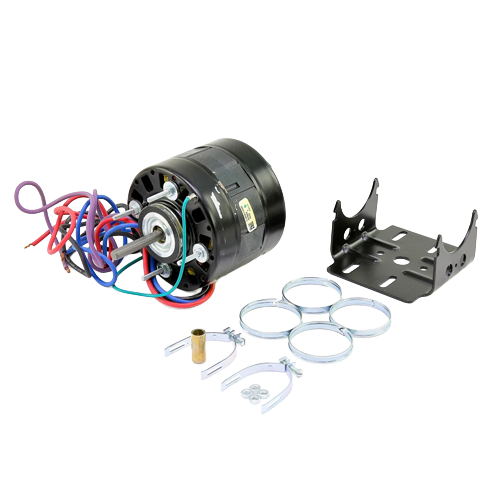

The Century RF6402 is a reliable shaded pole motor engineered for demanding HVAC and refrigeration fan applications. Built on a rugged 42Y frame platform, this motor delivers consistent performance in a wide range of equipment including evaporator fans, condenser fans, and other air-moving applications where dependable, low-maintenance operation is essential.
Electrical Specifications
- Horsepower: 1/10 HP
- Speed: 1050 RPM
- Voltage: 115/208-230V AC
- Amperage: 4.0 A (115V) / 2.0 A (208-230V)
Mechanical Specifications
- Frame: 42Y (42 Frame compatible)
- Rotation: CWSE (Clockwise facing Shaft End)
- Shaft Diameter: 3/8″ (includes 1/2″ adapter)
- Bearings: All-angle sleeve bearings for flexible mounting orientations
- Enclosure: Open
- Motor Type: Shaded Pole
Features & Benefits
- Reversible rotation for versatile installation configurations
- Automatic thermal protector guards against overheating and motor burnout
- All-angle sleeve bearings allow horizontal, vertical, or any-angle mounting
- Includes 1/2″ shaft adapter for broad OEM compatibility
- Open enclosure promotes airflow and heat dissipation
- 42Y frame ensures straightforward drop-in replacement for most standard applications
- Dual-voltage capability (115V or 208-230V) simplifies stocking and installation
Typical Applications
- Evaporator fan motors in refrigeration cases and walk-in coolers
- Condenser fan motors in light commercial HVAC equipment
- OEM replacement in 42Y and 42 frame motor applications
- Air-moving applications requiring low-speed, quiet operation
