Description

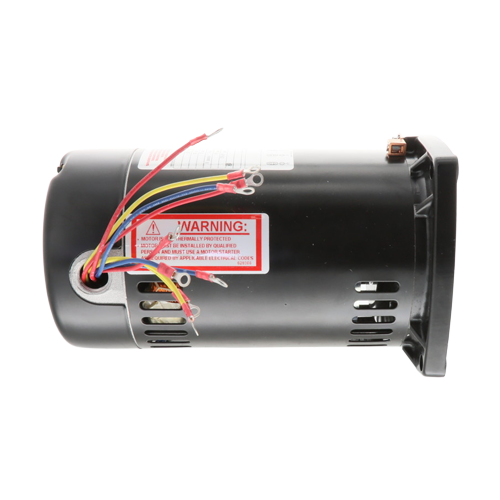

The Century Q3072 is a heavy-duty three-phase pump motor engineered for reliable performance in commercial and industrial HVAC pumping applications. Built around a 48Y NEMA frame and featuring an open drip-proof (ODP) enclosure, this motor delivers dependable operation in a wide range of pump-driven systems.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 3450 RPM
- Amperage: 3.6-1.8 Amps
- NEMA Frame: 48Y
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Rotation: Counterclockwise (CCW), Pump End
Motor Features
- Dual-voltage design (208-230/460V) for flexible installation across a variety of electrical services
- Three-phase power for smooth, efficient operation and reduced electrical noise
- High 3450 RPM speed rating ideal for centrifugal pump applications
- Ball bearing construction for long service life and reduced maintenance requirements
- Open drip-proof enclosure protects internal components from dripping liquids in standard indoor environments
- CCW rotation at the pump end ensures proper coupling with standard pump configurations
- 48Y NEMA frame provides a standardized mounting footprint for straightforward replacement and installation
Applications
- Hydronic heating and cooling circulating pumps
- Commercial HVAC pump systems
- Industrial fluid transfer pumps
- Water circulation and booster pump systems
The Century Q3072 is the go-to choice for HVAC contractors and mechanical engineers who need a proven, standards-compliant pump motor that installs quickly and performs reliably over the long term.
