Description

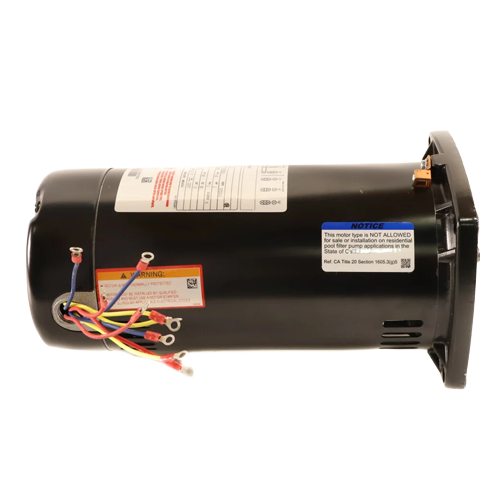

The Century Q3202 is a heavy-duty three-phase pump motor engineered for demanding commercial and industrial HVAC and fluid-handling applications. Built around a 48Y NEMA frame, this motor delivers reliable, consistent performance in a compact footprint that fits standard pump mounts.
Key Specifications
- Horsepower: 2 HP
- Voltage: 208-230/460 VAC (dual voltage)
- Phase: Three Phase
- Speed: 3450 RPM
- Amperage: 8.5 A (208-230V) / 4.25 A (460V)
- Frame Size: 48Y NEMA
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Rotation: Counterclockwise (CCW), Pump End
Design & Construction
The Open Drip Proof (ODP) enclosure protects internal windings from dripping liquids and falling debris in non-hazardous indoor environments, making it well-suited for mechanical rooms and pump skid installations. Precision ball bearings provide smooth, low-friction operation and extended service life, even under continuous-duty load cycles.
Electrical Flexibility
The dual-voltage design (208-230/460 VAC) allows the Q3202 to be wired for either lower or higher voltage three-phase power supplies, giving installers the flexibility to match existing electrical infrastructure without sourcing a different motor.
Pump-Ready Configuration
The 48Y NEMA frame and CCW pump-end rotation make this motor a direct-fit replacement or new installation choice for close-coupled centrifugal pumps, circulators, and other pump assemblies commonly found in HVAC hydronic systems, cooling towers, and process fluid applications.
Applications
- Close-coupled centrifugal pumps
- Hydronic heating and cooling systems
- Cooling tower pump assemblies
- Commercial HVAC fluid-handling equipment
- Industrial process pump skids
