Description

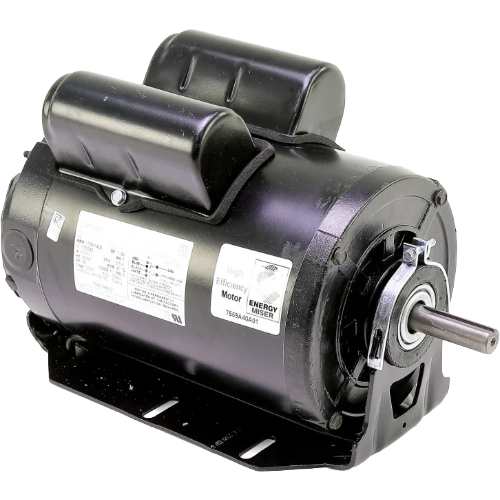

The Century PD6104AV2 is a heavy-duty 1 HP general purpose motor engineered for demanding HVAC and industrial applications. Built on the industry-standard 56 frame with a resilient base mount, this motor delivers reliable performance in harsh environments thanks to its Totally Enclosed Air Over (TEAO) enclosure, which protects internal windings from dust, debris, and moisture.
Key Features
- 1 HP output for dependable, high-torque operation
- Dual-speed operation: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)
- Dual-voltage: 115/230V AC — wired for either supply voltage
- Full-load amperage: 9.0A (115V) / 4.5A (230V)
- 1.30 service factor for sustained overload capability
- TEAO (Totally Enclosed Air Over) enclosure for superior environmental protection
- Resilient base mounting for vibration dampening and quiet operation
- Ball bearings for long service life and reduced maintenance
- Automatic thermal overload protector (Auto Protector) for built-in motor protection
- High starting torque for reliable start-up under load
- Reversible rotation — easily configurable for clockwise or counterclockwise operation
- NEMA 56 frame for broad cross-reference compatibility
Specifications
- Horsepower: 1 HP
- Speed: 1725/1425 RPM
- Voltage: 115/230V AC
- Amperage: 9.0A / 4.5A
- Service Factor: 1.30
- Frame: NEMA 56
- Enclosure: TEAO (Totally Enclosed Air Over)
- Mounting: Resilient Base
- Bearings: Ball Bearings
- Thermal Protection: Automatic
- Rotation: Reversible
- Starting Torque: High
Applications
- Condenser fans and evaporator fans
- Air handling units and blower assemblies
- Commercial refrigeration equipment
- General HVAC fan and blower duty
- Industrial equipment requiring a TEAO-rated motor
The Century PD6104AV2 is a versatile, field-proven motor ideal for HVAC technicians and contractors who need a reliable replacement or new installation motor with broad voltage compatibility and robust environmental protection.
