Description

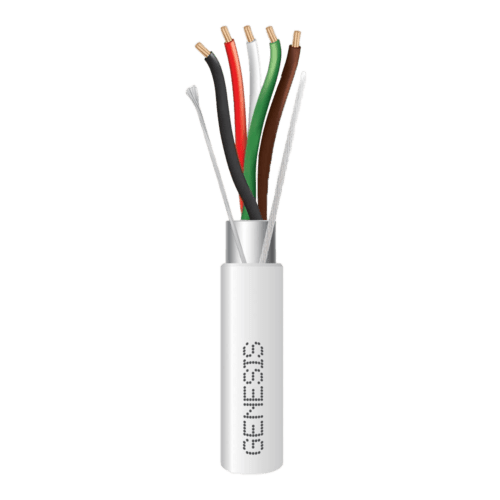

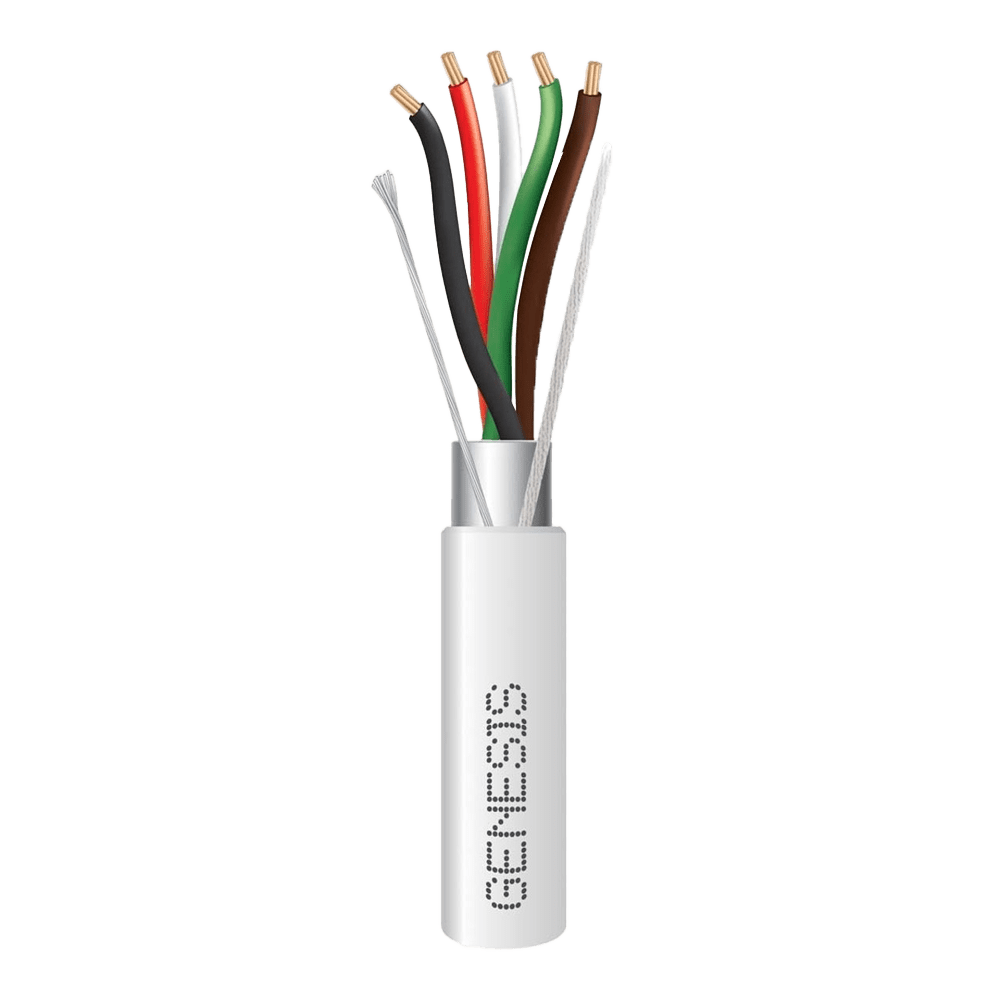

This Genesis cable features 5 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Applications: Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power-Limited.
Features:
- Rating: CMP, CL3P, FPLP, FT6
- Approvals: ETL Listed
- Conductor: 18 AWG 19 Strand Bare Copper
- Conductor Count: 5
- Insulation: Plenum PVC (0.007in nom.)
- Insulation Colors: Black, Red, White, Green, Brown
- Lay Length: 3.50in nom.
- Shielding: Aluminum Foil / Mylar with 24 AWG Tinned-Copper Drain
- Rip Cord: Yes
- Jacket: Plenum PVC (0.015in nom.)
- Overall Diameter: 0.197in nom.
