Description

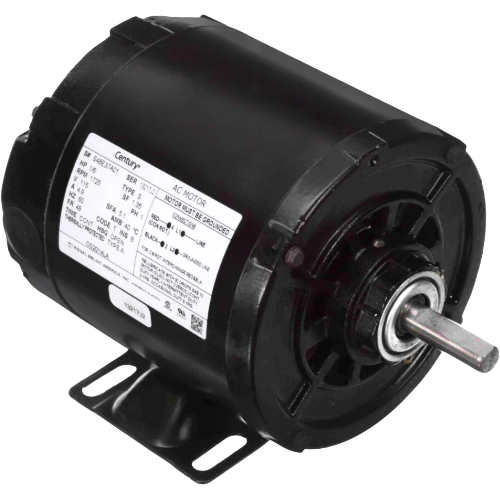

The Century OS2024L is a reliable general purpose split phase motor engineered for continuous-duty HVAC and light industrial applications. Built on the industry-standard 48 frame with a rigid base, this motor installs easily into a wide range of equipment and is reversible for maximum installation flexibility.
Electrical Specifications
- Voltage: 115V AC
- Full Load Amps: 5.2 A
- Motor Type: Split Phase
- Service Factor: 1.35
Performance Specifications
- Horsepower: 1/4 HP
- Speed: 1725 RPM
- Duty: Continuous
- Rotation: Reversible
Mechanical & Construction Details
- Frame: 48
- Mounting: Rigid Base
- Bearings: Sleeve Bearings
- Enclosure: Open
- Thermal Protector: None
Key Benefits
- Reversible rotation allows flexible installation orientation
- 1.35 service factor provides built-in overload margin for demanding applications
- Standard 48 frame ensures broad OEM and replacement compatibility
- Continuous duty rating designed for uninterrupted, long-term operation
- Open enclosure promotes airflow and heat dissipation in ventilated environments
The Century OS2024L is an ideal direct replacement or new-installation motor for fans, blowers, pumps, and other HVAC equipment requiring a compact, dependable 1/4 HP split phase drive.
