Description

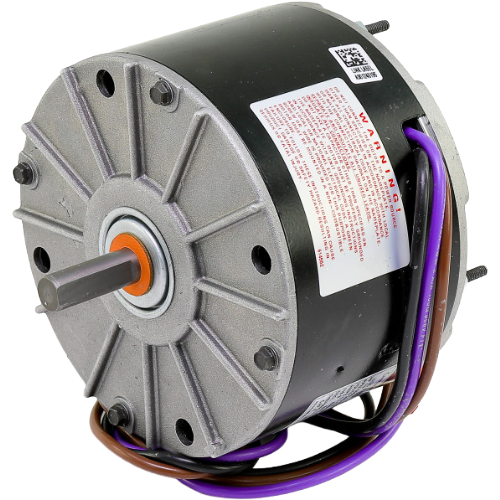

The Century OTR1004 is a dependable single-speed condenser fan motor engineered for reliable performance in a wide range of HVAC applications. Designed as a direct OEM-quality replacement, it delivers consistent airflow and efficient operation in residential and light commercial air conditioning systems.
Motor Specifications
- Horsepower: 1/8 HP
- Speed: 1650 RPM
- Speeds: 1 (single-speed)
- Voltage: 200–230V AC
- Amperage: 0.7–0.9 Amps
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Shaft Size: 1/2″ diameter x 1-1/2″ length
- Motor Diameter: 5-5/8″
Key Features
- Single-speed operation for straightforward, reliable performance
- Wide voltage range (200–230V AC) for flexible installation compatibility
- CCWLE rotation for proper condenser fan airflow direction
- Compact 5-5/8″ motor diameter fits standard condenser fan housings
- 1/2″ x 1-1/2″ shaft accommodates common fan blade hubs
- Low amp draw (0.7–0.9A) supports energy-efficient system operation
Typical Applications
- Residential and light commercial air conditioning condensers
- OEM replacement in systems requiring a 1/8 HP, 1650 RPM motor
- Any application calling for a 200–230V, CCWLE, 5-5/8″ frame motor
