Description

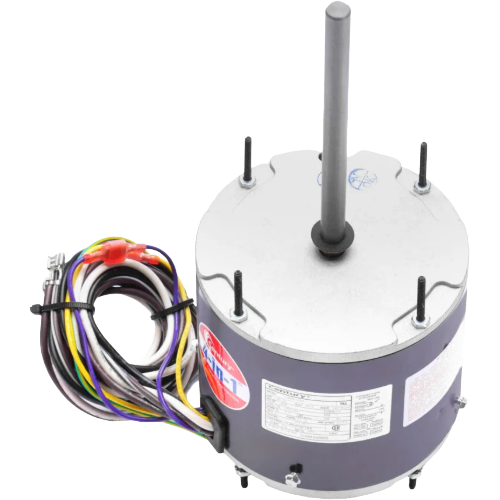

The Century ORM5488B is a heavy-duty, totally enclosed condenser fan motor engineered for reliable performance in demanding HVAC applications. Designed for use in air conditioning condensing units and other outdoor equipment, this motor delivers dependable operation across a wide range of installation scenarios.
Key Features
- Dual horsepower rating: 1/3 HP – 1/8 HP for flexible application matching
- 825 RPM operating speed for quiet, efficient condenser fan operation
- Single-speed design for straightforward installation and control
- 208–230VAC input voltage for compatibility with standard residential and light commercial power supplies
- 2.1-amp full-load current draw
- Ball bearing construction for extended service life and reduced maintenance
- 5-5/8″ motor diameter fits standard 48Y frame equipment
- All-angle mounting capability for maximum installation flexibility
- Totally enclosed motor housing protects internal components from moisture, dust, and debris
- Reversible rotation allows field configuration for a wide variety of applications
- Removable drain plugs facilitate moisture drainage and prevent condensate buildup
- 48Y frame for direct OEM and replacement compatibility
Specifications
- SKU: ORM5488B
- Brand: Century
- Horsepower: 1/3 HP – 1/8 HP
- Speed: 825 RPM
- Number of Speeds: 1
- Voltage: 208–230VAC
- Amperage: 2.1 Amps
- Bearing Type: Ball Bearings
- Motor Diameter: 5-5/8″
- Frame: 48Y
- Mounting: All Angle
- Enclosure: Totally Enclosed
- Rotation: Reversible
- Drain Plugs: Removable
Applications
- Residential and light commercial air conditioning condensing units
- Replacement motor for 48Y frame OEM equipment
- Outdoor HVAC equipment requiring a totally enclosed motor
- Systems requiring reversible rotation or all-angle mounting flexibility
