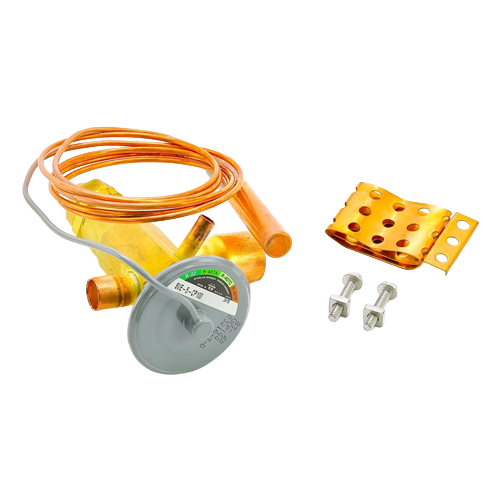

Aaon P05500 1/2×7/8 R-22 5-Ton TXV with 5′ Capillary Tube

Description

The Aaon P05500 is an OEM thermostatic expansion valve (TXV) engineered for use in R-22 refrigerant systems rated at 5-ton capacity. Designed as a direct replacement or service component for compatible Aaon equipment, this valve delivers precise refrigerant metering to maintain optimal evaporator performance and system efficiency.

Key Features

• OEM Aaon replacement TXV for reliable, factory-spec performance
• Designed for R-22 refrigerant systems
• Rated for 5-ton system capacity
• 1/2″ liquid line inlet connection
• 7/8″ suction line outlet connection
• 5-foot capillary tube for flexible remote bulb placement
• Provides accurate superheat control to protect the compressor

Specifications

• SKU: P05500
• Brand: Aaon
• Refrigerant: R-22
• Capacity: 5 Ton
• Inlet Connection: 1/2″
• Outlet Connection: 7/8″
• Capillary Tube Length: 5 Feet

Application

The P05500 TXV is ideal for HVAC technicians and contractors performing service or replacement work on Aaon rooftop units and air conditioning systems that utilize R-22 refrigerant. The 5-foot capillary tube provides installation flexibility when positioning the remote sensing bulb on the suction line, ensuring accurate superheat measurement and stable system operation.
