Description

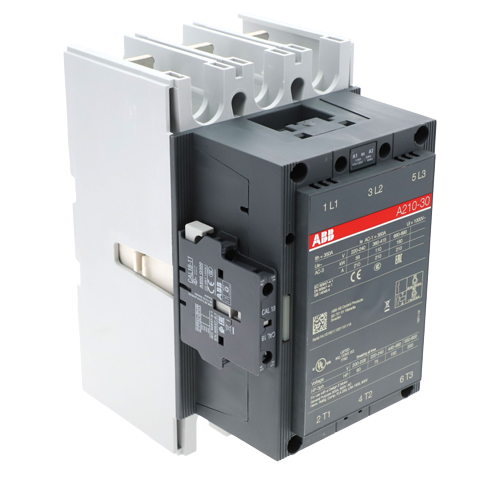

The ABB A210-30-11-84 is a heavy-duty, non-reversing magnetic contactor engineered for demanding commercial and industrial HVAC and electrical applications. Rated at 210 amps across three poles, this contactor delivers robust, reliable switching performance for high-load motor control and power distribution circuits.
Key Features
- 210-amp continuous current rating for high-capacity load switching
- 3-pole configuration for standard three-phase power applications
- 110–120V AC coil voltage for compatibility with common control circuits
- Non-reversing design for straightforward motor starting and load control
- Screw terminal connections for secure, code-compliant wiring
- One normally closed (NC) auxiliary contact included
- One normally open (NO) auxiliary contact included
Auxiliary Contacts
The integrated auxiliary contact block provides both a normally open (NO) and a normally closed (NC) contact, enabling interlocking, status indication, and control circuit feedback without the need for additional add-on blocks.
Applications
- Commercial HVAC compressor and motor starting circuits
- Industrial motor control centers (MCCs)
- Power distribution and load switching panels
- Chiller, air handler, and large-tonnage cooling equipment
- Pump and fan motor control applications
Specifications
- Brand: ABB
- SKU / Part Number: A210-30-11-84
- Coil Voltage: 110–120V AC
- Poles: 3
- Current Rating: 210 Amps
- Operation: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
