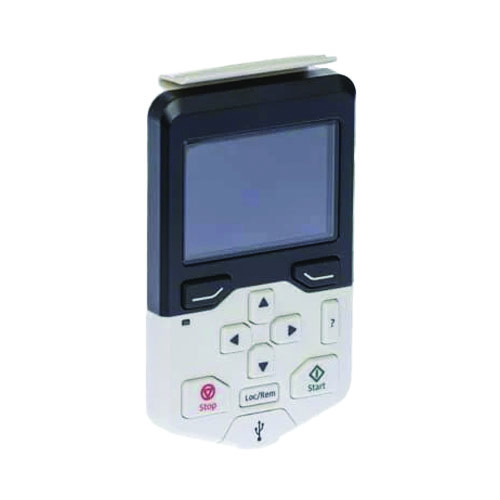

ABB ACS-AP-S Assistant Control Panel

Description

The ABB ACS-AP-S Assistant Control Panel is a compact, handheld operator interface designed for use with ABB’s ACS series variable frequency drives (VFDs). It provides technicians and system integrators with a straightforward, menu-driven interface for commissioning, programming, monitoring, and diagnosing ABB drives in the field or at the panel.

Key Features

• Compatible with ABB ACS series variable frequency drives
• Intuitive menu-driven navigation for fast drive setup and commissioning
• Real-time parameter monitoring and adjustment
• Fault history and diagnostic readout for efficient troubleshooting
• Copy/upload and download functionality for transferring drive parameters between units
• Backlit display for easy readability in low-light environments
• Compact, handheld design for convenient on-site use
• Removable panel — can be used locally or remotely via extension cable

Applications

• HVAC variable frequency drive commissioning and service
• Fan and pump motor speed control systems
• Commercial and industrial building automation applications
• Replacement or spare operator panel for existing ABB ACS drive installations

Why Choose the ABB ACS-AP-S?

The ACS-AP-S simplifies the full lifecycle of ABB drive management — from initial startup and parameter configuration to ongoing monitoring and fault diagnosis. Its parameter copy feature is especially valuable for service technicians who need to replicate drive settings across multiple units quickly and accurately, reducing commissioning time and minimizing the risk of configuration errors.

Compatibility

• Designed for use with ABB ACS series drives (verify compatibility with specific drive model prior to installation)
