Description

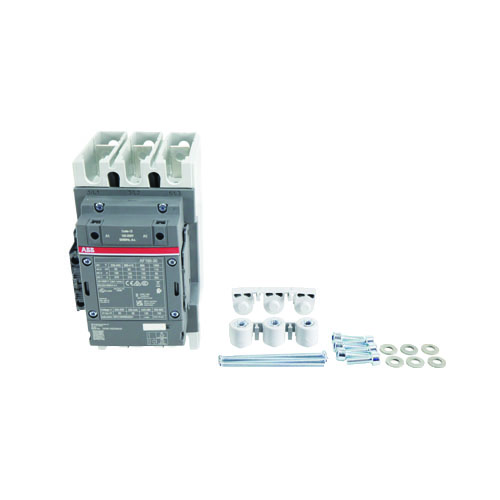

The ABB AF190-30-11-13 is a heavy-duty, 3-pole definite purpose contactor engineered for demanding industrial and commercial HVAC applications. Featuring ABB’s advanced AF-series wide-range coil technology, this contactor accepts a broad control voltage input of 100–250V AC/DC, simplifying installation and reducing the need for multiple SKUs across different voltage systems.
Key Features
- Wide-range coil accepts 100–250V AC/DC control voltage — one contactor covers multiple voltage applications
- 3-pole configuration rated at 190 Amps for high-capacity load switching
- Screw terminal connections for secure, vibration-resistant wiring
- Integrated auxiliary contacts: 1 Normally Open (NO) and 1 Normally Closed (NC) for control circuit feedback and interlocking
- AF-series design with built-in surge suppression for extended coil life
- Compact, robust construction suited for panel board and enclosure mounting
Specifications
- SKU / Part Number: AF190-30-11-13
- Brand: ABB
- Poles: 3
- Current Rating: 190 Amps
- Control Voltage: 100–250V AC/DC
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
- Series: AF (Wide-Range Coil)
Applications
- Commercial HVAC compressor and motor switching
- Industrial motor control centers (MCCs)
- Chiller and large-tonnage refrigeration equipment
- Fan and pump motor control panels
- Power distribution and load management systems
Why Choose the ABB AF190-30-11-13?
ABB’s AF-series contactors are recognized globally for their reliability and versatility. The wide-range coil eliminates the need to stock separate contactors for 120V and 240V applications, while the built-in surge suppression protects the coil from voltage spikes — reducing maintenance costs and downtime. The 1NO/1NC auxiliary contact block enables seamless integration into control circuits for status monitoring, interlocking, and safety shutdown sequences.
