Description

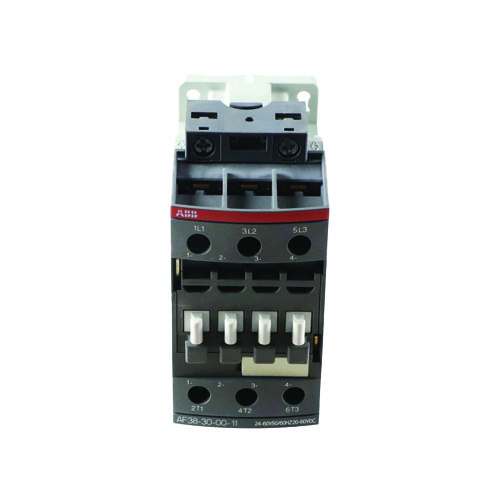

The ABB AF38-30-00-11 is a heavy-duty definite-purpose contactor engineered for demanding HVAC and industrial electrical applications. Its wide-range coil technology accepts both AC and DC control voltages in a single device, dramatically simplifying panel design and reducing the need for multiple SKUs on the job.
Key Features
- Wide-range coil accepts 24–60VAC and 20–60VDC control voltage — one contactor covers multiple control circuit configurations
- 3-pole configuration rated at 38 amps for robust load switching
- Screw terminal connections for fast, secure field wiring
- Compact, space-saving design suitable for panel and enclosure mounting
- Built to ABB’s AF-series reliability standards for long service life in continuous-duty HVAC applications
Specifications
- SKU / Part Number: AF38-30-00-11
- Brand: ABB
- Poles: 3
- Current Rating: 38 Amps
- Control Voltage (AC): 24–60VAC
- Control Voltage (DC): 20–60VDC
- Terminal Type: Screw Terminals
- Product Type: Electrical Contactor
Application
The AF38-30-00-11 is ideal for switching compressors, condenser fan motors, electric heaters, and other high-current HVAC loads. The wide-range coil makes it a go-to choice for technicians working across diverse control systems — from low-voltage building automation outputs to standard transformer-based circuits. Whether you’re replacing a failed contactor on a rooftop unit or specifying components for a new commercial installation, the ABB AF38 series delivers the dependability and flexibility professionals demand.
