Description

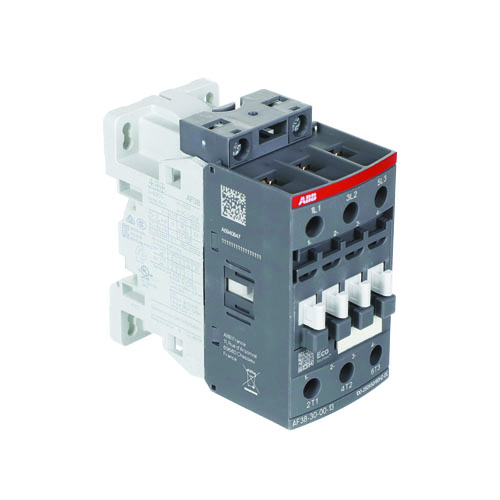

The ABB AF38-30-00-13 is a 3-pole definite purpose contactor from ABB’s AF-series lineup, engineered for dependable performance in HVAC, commercial, and light industrial switching applications. Rated at 24 amps, this contactor features a wide-range coil that accepts both AC and DC control voltages from 100 to 250V, eliminating the need for separate AC or DC coil versions and simplifying installation and inventory management.
Key Features
- 3-pole configuration for three-phase and single-phase load switching
- 24A continuous current rating
- Wide-range coil voltage: 100–250V AC/DC — one coil covers multiple control voltage scenarios
- ABB AF-series design with built-in surge suppression on the coil for extended electrical life
- Compact, DIN rail or panel-mount compatible footprint
- 30 main contact configuration (3 normally open main poles, no auxiliary contacts included)
- Suitable for motor loads, compressor circuits, fan and blower control, and resistive heating loads
Application Benefits
- Wide-range coil simplifies wiring in systems where control voltage may vary between 100V and 250V AC or DC
- Designed for frequent switching cycles common in HVAC equipment such as compressors, air handlers, and condensing units
- ABB’s AF-series contactors are recognized for long mechanical and electrical service life
- Easy field replacement for legacy contactor upgrades
Specifications
- SKU: AF38-30-00-13
- Brand: ABB
- Poles: 3
- Current Rating: 24A
- Coil Voltage: 100–250V AC/DC
- Contact Configuration: 30 (3 NO main poles)
- Series: AF-Series
