Description

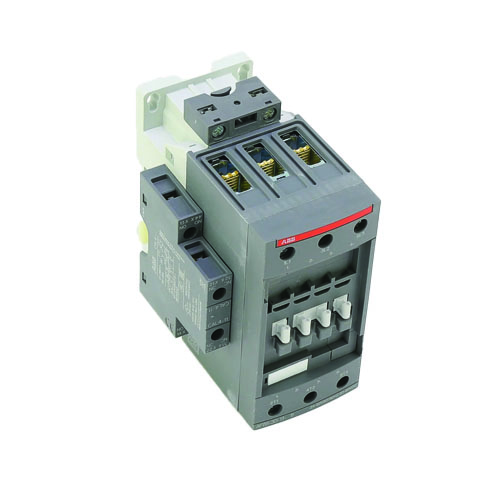

The ABB AF65-30-11-11 is a heavy-duty 3-pole contactor engineered for demanding HVAC and industrial electrical switching applications. Its wide-range coil accepts both AC and DC control voltages — 24–60VAC and 20–60VDC — providing exceptional installation flexibility across a broad range of control circuit configurations without the need for separate AC or DC versions.
Key Features
- Wide-range coil: 24–60VAC and 20–60VDC control voltage compatibility
- 3-pole main contact configuration for three-phase load switching
- 65-amp continuous current rating for high-load applications
- Screw terminal connections for secure, reliable wiring
- One Normally Open (1NO) auxiliary contact included
- One Normally Closed (1NC) auxiliary contact included
- Compact, DIN-rail-compatible design for panel integration
Wide-Range Coil Technology
The AF series wide-range coil technology eliminates the need to stock multiple contactor SKUs for different control voltages. Whether your control circuit operates on low-voltage AC or DC — from 24V to 60V — this single contactor handles it all, reducing inventory complexity and simplifying field replacements.
Auxiliary Contacts
The integrated 1NO + 1NC auxiliary contact block enables status feedback, interlocking, and control circuit signaling without the need for add-on auxiliary contact modules, saving panel space and installation time.
Applications
- HVAC compressor and motor switching
- Commercial and industrial motor control centers
- Fan and pump control panels
- Building automation and energy management systems
- General-purpose three-phase load switching
Specifications
- SKU: AF65-30-11-11
- Brand: ABB
- Poles: 3
- Current Rating: 65 Amps
- Control Voltage (AC): 24–60VAC
- Control Voltage (DC): 20–60VDC
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
