Description

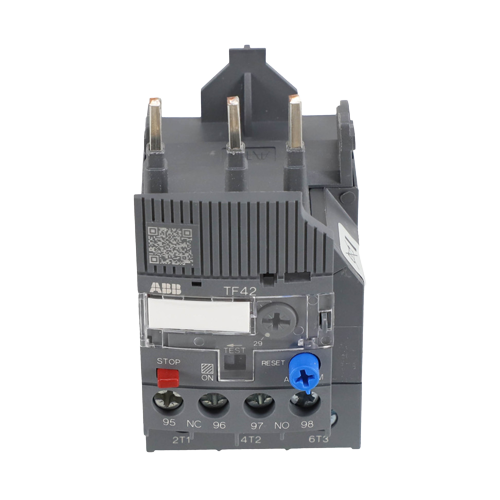

The ABB TF42-35 is a thermal overload relay designed to provide dependable motor and equipment protection across a wide range of commercial and industrial HVAC applications. With an adjustable current setting range of 29.0–35.0A, this relay guards against overload conditions that can cause costly motor burnout and unplanned downtime.
Product Overview
The TF42-35 belongs to ABB’s TF42 series of thermal overload relays, engineered to work in conjunction with ABB contactors for a complete motor starter solution. The relay monitors current draw and trips the circuit when sustained overcurrent conditions are detected, protecting compressors, fan motors, pumps, and other motor-driven HVAC components.
Key Features
- Adjustable current range: 29.0–35.0A
- Thermal overload protection for single- and three-phase motors
- Manual and automatic reset modes
- Trip-class protection to guard against sustained overcurrent and phase loss
- Compact design for panel and DIN rail mounting
- Compatible with ABB TF42-series contactors for integrated motor starter assemblies
- Test/reset button for easy field verification and commissioning
- Auxiliary contact output for remote fault indication or control circuit integration
Applications
- Commercial HVAC compressor and motor protection
- Condenser and evaporator fan motor circuits
- Hydronic pump motor starters
- Air handling unit motor control panels
- Industrial and commercial motor control centers
Why Choose ABB TF42-35
ABB is a globally recognized leader in power and automation technology. The TF42 series thermal overload relays are built to IEC standards, delivering consistent and repeatable trip characteristics that protect valuable HVAC equipment investments. The wide 29.0–35.0A adjustment range provides installation flexibility, allowing technicians to fine-tune protection to match the motor’s full-load amperage rating.
