Description

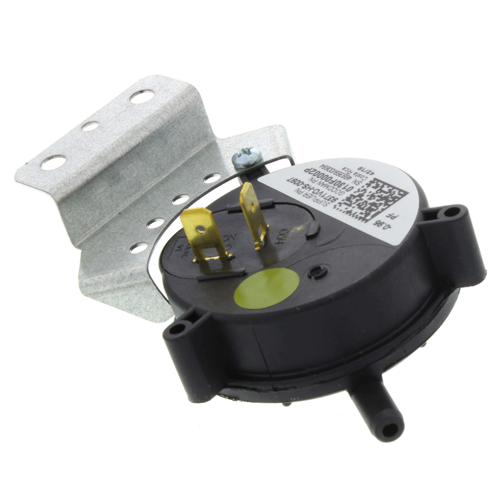

The Goodman / Amana 0130F00002P pressure switch is a factory‑specified safety component designed for many Goodman, Amana, Janitrol, and HVAC systems. It features an activation rating of ‑0.95 inches of water column (WC) with a single‑pole, single‑throw (SPST) configuration. This pressure switch helps confirm that the draft inducer is creating sufficient negative pressure (vacuum) in the venting path before allowing the system to proceed to ignition, thereby protecting against unsafe combustion conditions.
Features:
- Precise –0.95″ WC Rating: Calibrated to close at –0.95 inches WC, ensuring consistent and safe draft verification.
- SPST (Single‑Pole, Single‑Throw) Switch: Straightforward switching logic simplifies control board integration.
- ¼″ Barb Connection: Standard vacuum port allows easy and secure tubing connection.
- Genuine OEM Replacement: Designed to match original specifications for direct fit and reliable performance.
- Wide Model Compatibility: Used in a variety of furnace models including GMH, AMH, AMS, GKS, and more.
