Description

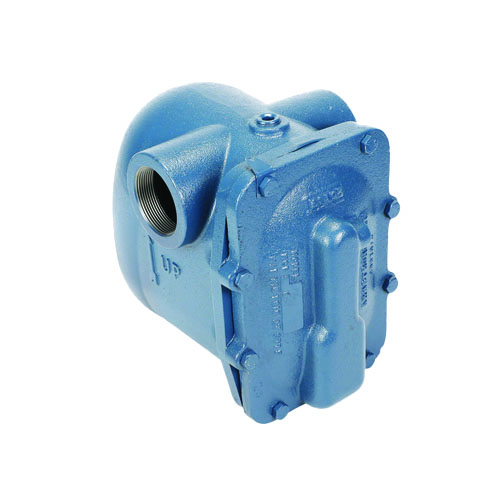

The Armstrong International 15B8 is a Series B Cast Iron Float & Thermostatic (F&T) Steam Trap engineered for reliable, continuous condensate discharge in low-pressure steam systems. Featuring a standard 2″ NPT connection and rated to 15 PSI, this trap is well-suited for unit heaters, heat exchangers, coils, and other steam heating equipment where efficient condensate removal is critical to system performance.
The float mechanism responds immediately to condensate load, providing modulating, continuous discharge rather than intermittent cycling — minimizing waterlogging and maximizing heat transfer efficiency. The integrated thermostatic air vent automatically purges non-condensable gases at startup and during operation, improving system warm-up times and overall efficiency.
Key Features
- Series B Cast Iron body construction for durability in demanding steam applications
- 2″ NPT standard pipe connection for straightforward installation
- 15 PSI maximum operating pressure rating
- 7/8″ orifice for appropriate condensate handling capacity
- Integrated thermostatic air vent for automatic purging of air and non-condensable gases
- Float & Thermostatic (F&T) design provides continuous, modulating condensate discharge
- Prevents steam loss while efficiently removing condensate and air
Specifications
- SKU: 15B8
- Brand: Armstrong International
- Series: Series B
- Body Material: Cast Iron
- Connection Type: Standard, 2″ NPT
- Maximum Operating Pressure: 15 PSI
- Orifice Size: 7/8″
- Trap Type: Float & Thermostatic (F&T)
- Air Vent: Thermostatic Air Vent Included
Applications
- Unit heaters and cabinet unit heaters
- Steam-to-water heat exchangers
- Heating coils and air handling units
- Low-pressure steam distribution systems
- Industrial and commercial steam heating equipment
