Description

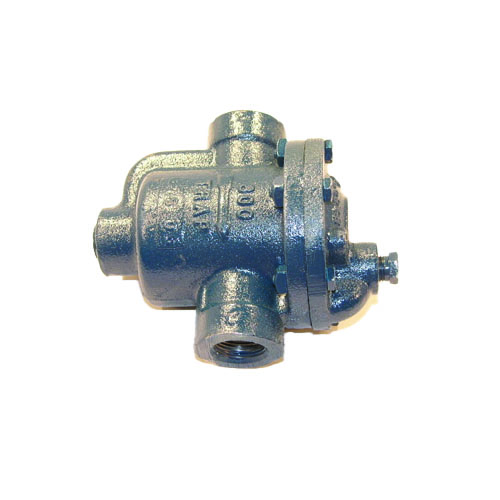

The Armstrong International 800-3/4-125 is a Series 800 Cast Iron Inverted Bucket Steam Trap engineered for dependable condensate removal and energy-efficient steam system operation. Built to handle demanding industrial and commercial heating applications, this trap combines rugged cast iron construction with the proven inverted bucket mechanism — one of the most reliable steam trapping technologies available.
The inverted bucket design operates on the principle of buoyancy: steam keeps the bucket afloat and the valve closed, while condensate and non-condensable gases cause the bucket to sink and open the valve for discharge. This continuous, mechanical action ensures efficient condensate removal without wasting live steam, protecting downstream equipment and maximizing system efficiency.
Key Specifications
- Model / SKU: 800-3/4-125
- Series: 800
- Connection Size: 3/4″ NPT
- Maximum Operating Pressure: 125 PSI
- Orifice Size: 7/64″
- Body Material: Cast Iron
- Trap Type: Inverted Bucket
Product Features
- Inverted bucket mechanism provides continuous, reliable condensate discharge
- Cast iron body delivers long-lasting durability in high-cycle steam environments
- 3/4″ NPT connections for straightforward installation into standard steam piping
- 125 PSI maximum operating pressure suits a wide range of low-to-medium pressure steam systems
- 7/64″ orifice sized for efficient condensate flow and minimal steam loss
- Vents air and non-condensable gases automatically to maintain system efficiency
- Minimal moving parts reduce maintenance requirements and extend service life
Typical Applications
- Steam distribution and process heating systems
- Unit heaters and heat exchangers
- Steam mains and drip legs
- Industrial and commercial HVAC steam systems
- Tracer lines and low-to-medium pressure steam equipment
Why Choose Armstrong International
Armstrong International is a globally recognized leader in steam, air, and hot water system solutions. The Series 800 inverted bucket steam trap reflects Armstrong’s commitment to engineering quality, energy conservation, and system reliability — making it a trusted choice for mechanical contractors, facility engineers, and HVAC professionals worldwide.
