Description

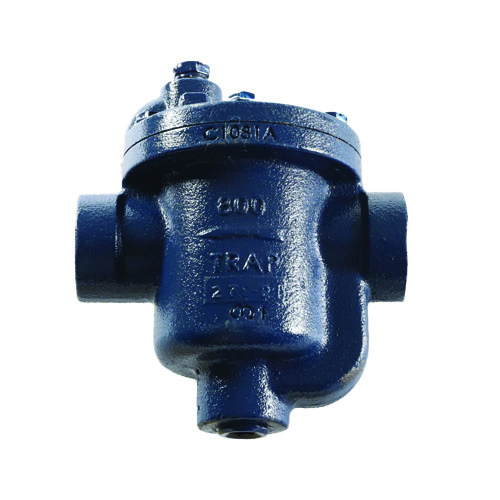

The Armstrong International Series 800 Cast Iron Inverted Bucket Steam Trap (Model 800-3/4-150) is a dependable, time-tested solution for steam condensate removal in commercial and industrial HVAC and process piping systems. Built with a rugged cast iron body and engineered to handle operating pressures up to 150 PSI, this trap delivers consistent, efficient performance in demanding steam system applications.
The inverted bucket mechanism is one of the most reliable steam trapping principles available — it opens to discharge condensate and air while snapping shut to prevent live steam loss, helping to maximize system efficiency and reduce energy waste. The #38 orifice is matched to the 150 PSI pressure rating, ensuring optimal condensate discharge capacity for the application.
Key Features
- Series 800 cast iron body construction for durability in industrial environments
- 3/4″ NPT connections for straightforward installation into standard piping
- 150 PSI maximum allowable working pressure (MAWP)
- #38 orifice sized for optimal performance at rated pressure
- Inverted bucket operating principle provides reliable, automatic condensate discharge
- Discharges air and CO₂ continuously, preventing air binding
- Minimal live steam loss for improved energy efficiency
- Suitable for steam heating, process, and HVAC steam distribution systems
Specifications
- Brand: Armstrong International
- Model / SKU: 800-3/4-150
- Series: 800
- Body Material: Cast Iron
- Connection Size: 3/4″ NPT
- Maximum Allowable Working Pressure: 150 PSI
- Orifice: #38
- Trap Type: Inverted Bucket
Applications
- Steam heating mains and branch lines
- Unit heaters and heat exchangers
- Commercial and industrial HVAC steam distribution
- Process steam equipment condensate removal
- Drip legs and steam tracer lines
