Description

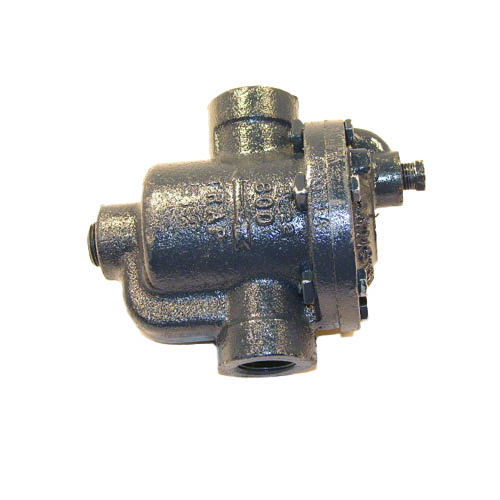

The Armstrong International 800-3/4-80 is a Series 800 cast iron inverted bucket steam trap engineered for dependable condensate and air removal in a wide range of industrial and commercial steam systems. Featuring a 3/4″ NPT connection and rated for up to 80 PSI operating pressure, this trap incorporates a 1/8″ orifice for precise, efficient discharge control.
How It Works
The inverted bucket mechanism operates on the principle of steam buoyancy. When steam enters the trap, the inverted bucket rises and closes the discharge valve, retaining live steam in the system. As condensate accumulates, the bucket loses buoyancy, sinks, and opens the valve to discharge condensate — then resets automatically. A small vent hole in the top of the bucket continuously purges non-condensable gases such as air and CO₂, preventing air binding and maintaining efficient heat transfer throughout the system.
Key Features
- Series 800 cast iron body construction for durability in demanding steam applications
- 3/4″ NPT inlet and outlet connections for straightforward installation
- 80 PSI maximum allowable working pressure (MAWP)
- 1/8″ orifice for optimized condensate discharge capacity
- Inverted bucket design provides continuous air and non-condensable gas venting
- Snap-action discharge valve for positive open/close operation
- Mechanically operated — no external power source required
- Suitable for steam mains, drip legs, tracer lines, and process heating applications
Specifications
- SKU / Model: 800-3/4-80
- Brand: Armstrong International
- Series: 800
- Body Material: Cast Iron
- Connection Size: 3/4″ NPT
- Maximum Operating Pressure: 80 PSI
- Orifice Size: 1/8″
- Trap Type: Inverted Bucket
Applications
- Steam distribution mains and drip trap stations
- Unit heaters and heat exchangers
- Steam tracer lines for pipe freeze protection
- Low- to medium-pressure process steam systems
- HVAC steam coils and air handling unit heating coils
Armstrong International is a globally recognized leader in steam system solutions, and the Series 800 inverted bucket steam trap reflects their commitment to long service life, minimal maintenance, and energy-efficient condensate management. The cast iron body provides excellent resistance to the thermal cycling and mechanical stresses inherent in steam system operation.
