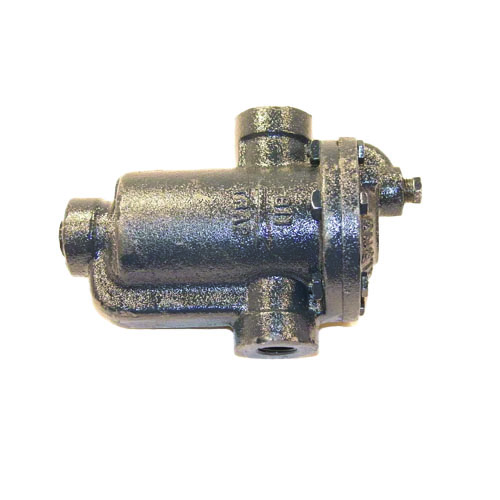

Armstrong International Series 811 Cast Iron Inverted Bucket Steam Trap
The Armstrong International 811-1/2-125 is a heavy-duty cast iron inverted bucket steam trap engineered for reliable, energy-efficient condensate removal in commercial and industrial steam systems. Part of the trusted Series 811 product line, this trap is designed to handle the rigors of continuous steam service while minimizing live steam loss and maximizing system efficiency.
How Inverted Bucket Traps Work
The inverted bucket mechanism operates on the principle of buoyancy. When steam enters the trap, the inverted bucket floats and closes the discharge valve, preventing steam from escaping. As condensate accumulates and air or non-condensable gases enter, the bucket loses buoyancy and sinks, opening the valve to discharge condensate. This proven design offers continuous, automatic operation with excellent resistance to water hammer and thermal shock.
Key Specifications
- Model: 811-1/2-125
- Series: 811
- Connection Size: 1/2″ NPT
- Maximum Allowable Pressure: 125 PSI
- Orifice Size: 1/8″
- Body Material: Cast Iron
- Trap Type: Inverted Bucket
Features & Benefits
- Cast iron body provides durability and long service life in demanding steam environments
- Inverted bucket design delivers continuous, automatic condensate discharge
- 1/8″ orifice sized for efficient condensate handling at rated pressure
- 1/2″ NPT connections for straightforward installation into standard steam piping
- Rated to 125 PSI for compatibility with a wide range of low-to-medium pressure steam systems
- Resistant to water hammer and thermal shock for dependable long-term performance
- Minimal live steam loss helps reduce energy costs and improve system efficiency
Typical Applications
- Commercial and industrial steam distribution systems
- Process heating equipment
- Steam mains and drip legs
- Heat exchangers and coils
- HVAC steam heating systems
