Description

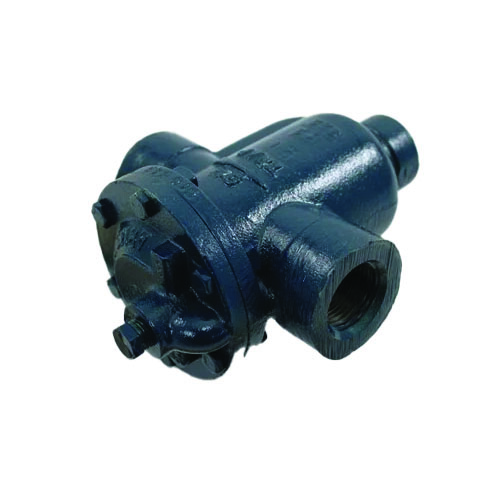

The Armstrong International 811-1-200 is a Series 811 Cast Iron Inverted Bucket Steam Trap engineered for dependable, energy-efficient condensate removal in industrial and commercial steam systems. Built with a rugged cast iron body, this trap is designed to handle demanding operating conditions while delivering consistent, long-service performance.
How It Works
The inverted bucket mechanism is one of the most proven steam trap operating principles in the industry. As condensate enters the trap body, the inverted bucket sinks and opens the discharge valve, allowing condensate and non-condensable gases to be expelled. When live steam enters, the bucket floats and closes the valve, preventing steam loss. This continuous cycling ensures efficient condensate drainage while conserving steam energy.
Key Specifications
- Model: Series 811
- SKU: 811-1-200
- Connection Size: 1″ NPT
- Maximum Allowable Pressure: 200 PSI
- Orifice Size: 7/64″
- Body Material: Cast Iron
- Trap Type: Inverted Bucket
Features & Benefits
- Cast iron construction provides durability in high-pressure steam environments
- Inverted bucket design offers reliable, self-priming operation
- 1″ NPT connections for straightforward installation into standard piping systems
- 200 PSI maximum pressure rating suits a wide range of industrial steam applications
- 7/64″ orifice sized for optimal condensate capacity and steam conservation
- Vents air and CO₂ on startup for efficient system warm-up
- Minimal moving parts reduce maintenance requirements and extend service life
Typical Applications
- Process steam heating systems
- Steam distribution mains and branch lines
- Heat exchangers and coils
- Industrial and commercial boiler plants
- Drip trap service on steam supply lines
Armstrong International is a globally recognized leader in steam, air, and hot water solutions. The Series 811 inverted bucket steam trap reflects their commitment to quality engineering and system efficiency, making it a trusted choice for mechanical contractors, plant engineers, and HVAC professionals.
